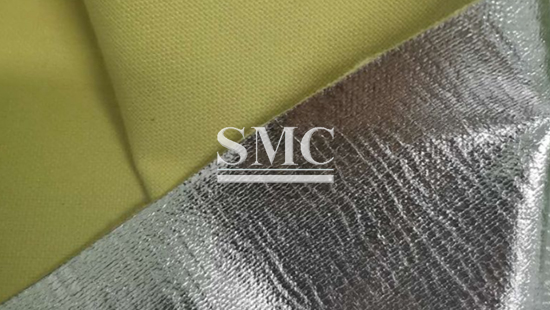

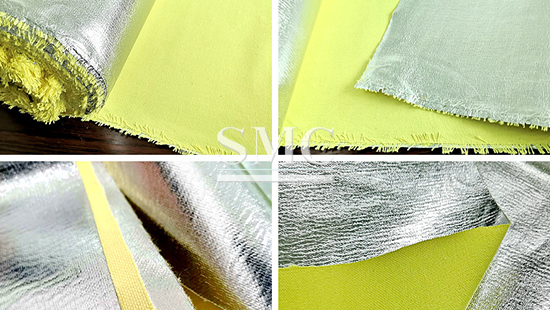

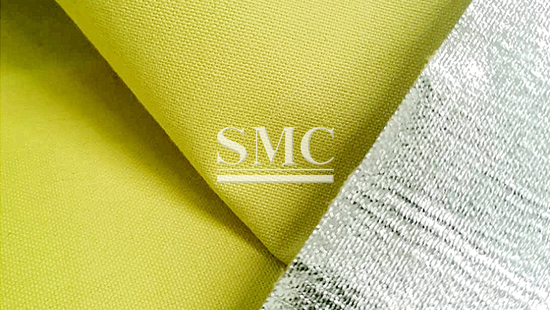

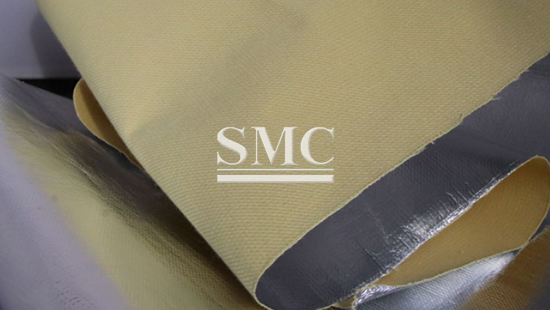

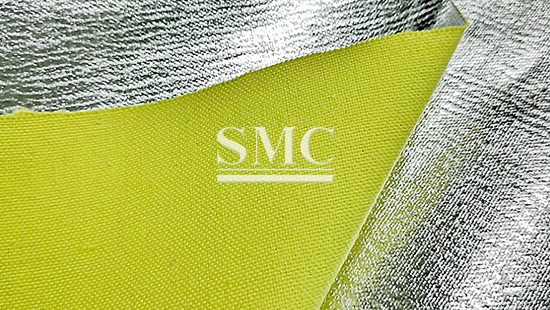

Aramid Aluminum Foil Laminated Fabric

Overall Thickness: 0.2–1.2 mm

Width: 1 m–1.5 m

Color: Yellow , White , Silver (foil side)

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading manufacturer and supplier of Aramid Aluminum Foil Laminated Fabric.

This composite fabric combines the high strength, heat resistance, and flame retardancy of aramid fibers with the excellent heat reflection, barrier properties, and durability of aluminum foil. The unique lamination structure provides outstanding thermal insulation, fire protection, and radiant heat reflection, making it suitable for extreme working conditions.

Aramid aluminum foil laminated fabric is widely used in fireproof protective clothing, heat shields, expansion joints, aerospace insulation, and industrial thermal barriers, where both mechanical strength and heat protection are critical.

If you are looking for a reliable partner for high-performance laminated fabrics, please contact us — we will respond within 24 hours.

Base Material: 100% Para-aramid / Meta-aramid / Aramid blends
Foil Type: Pure aluminum foil (≥99%), thickness 0.03–0.1 mm
Fabric Weave: Plain / Twill / Satin
Fabric Weight: 150–600 g/m² (before lamination)
Operating Temperature: Continuous up to 300℃, radiant heat resistance up to 800℃
Customized specifications available according to application requirements.

High tensile strength and tear resistance
Excellent thermal insulation and radiant heat reflection
Flame retardant and self-extinguishing
Chemical and oil resistance
Durable under vibration and flexing
Lightweight compared to other heat shields
Customizable lamination methods (adhesive, heat bonding)
Environmentally friendly, halogen-free materials

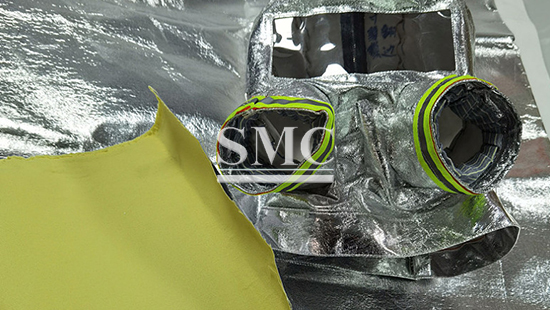

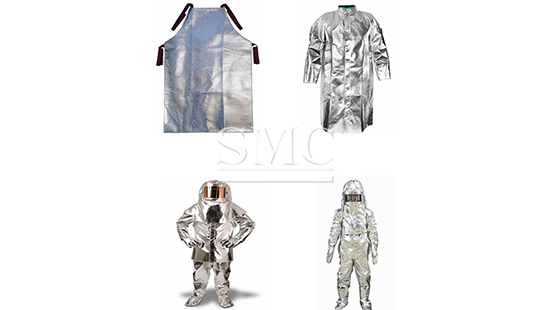

Fireproof protective clothing (firefighter suits, emergency response gear)
Heat shields for engines, turbines, and exhaust systems
Aerospace insulation and fire barriers
Expansion joints in high-temperature ducting
Protective covers for cables and pipelines
Industrial thermal insulation blankets
Welding and molten metal splash protection

Layer 1: Aluminum Foil (heat-reflective outer surface)

Layer 2: High-performance Aramid Fabric (strength and flame resistance)

Bonding: High-temperature adhesive or thermal bonding process

Optional Finish: PTFE coating, silicone treatment, or waterproof layer

Packaging of Aramid Aluminum Foil Laminated Fabric

Shanghai Metal Products are packed and labeled according to regulations and customer’s requests. Care is taken to avoid any damage during storage or transportation. Clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.
