Thickness: 0.004-0.01mm
Width: 510-1500mm
Material: Composite Polymer
Shanghai Mac Corporation is a leading manufacturer and supplier of Insulation Paper in China, who is specialized in research and development and production. The products passed ISO9001 quality management system, and get the European certification and a number of national honors. Our company introduces the latest technology of insulation material, with sophisticated production equipment and strong technical force.
We are specialized in pro-aminated paper DMD, Insulation Composite Laminated Material (DMD, NMN, NHN, 100% saturated DMD, Aramid paper, Diamond dotted paper), Insulation fiberglass sleeving (2715 PVC fiberglass sleeves, 2751 Silicone rubber fiberglass sleeves, 2740 Acrylic fiberglass sleeve, 2753 Silicone fiberglass sleeves, PU fiberglass sleeve), Mylar film (Polyester film, Milky white mylar film), Insulation tape (insulation pvc tape) and other electrical insulating material. They are used in motor, transformer, generator, reactor, etc. We have gained ISO9001, SGS and material ROHS and REACH certificate. Our products are very popular in the international markets. We have exported to many countries, like Turkey, Brazil, South korea, Tunisia, India, Russia and so on.
If you want to know more about our Insulation paper or other insulation material, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Insulation Paper:
|
No |
Items |
Unit |
Standard |
Test Result |
|
1 |
Thickness |
mic |
10 ±6% |
10.4 |
|
2 |
Tolerance |
mic |
0.7 |
0.5 |
|
3 |
Density |
g/cm3 |
1.2±0.05 |
1.23 |
|
4 |
Tensile Index |
N.m/g |
66 |
80.9 |
|
5 |
Electrical Strength (AC) |
min≥ |
270 |
379 |
|
average≥ |
415 |
483 |
||
|
6 |
Conducting Particles ≤ |
pc/m2 |
105 |
12 |
|
7 |
Moisture Content |
% |
5.0-9.0 |
7.1 |
|
8 |
Ash Content ≤ |
% |
0.28 |
0.23 |
|
9 |
Acidity of water extract ≤ |
% |
0.007 |
0.003 |
|
10 |
Conductivity of water extract ≤ |
mS/m |
4 |
1.5 |
|
11 |
Chloride content ≤ |
mg/kg |
24 |
9 |
|
12 |
Dielectric dissipation factor ≤ |
% |
0.2 |
0.2 |
|
% |
0.27 |
0.25 |

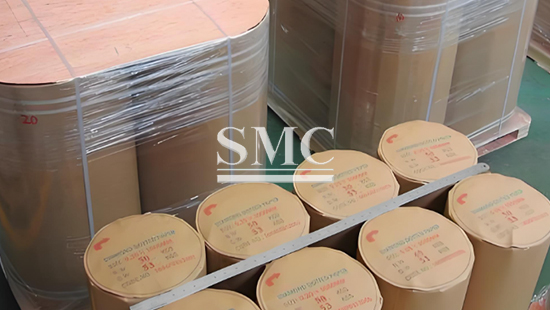

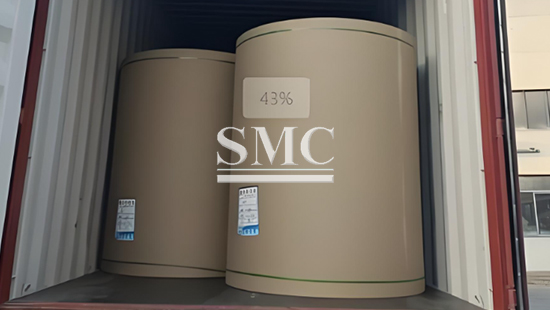

Shanghai Mac Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Mac Standard
2) Customization
