PCTFE Product

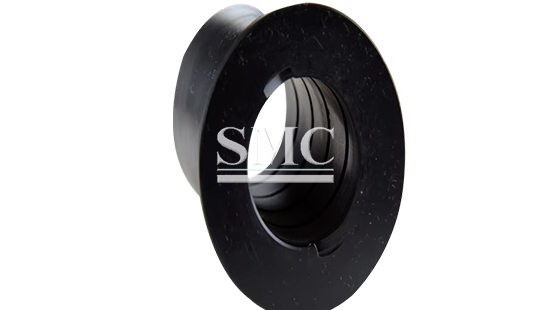

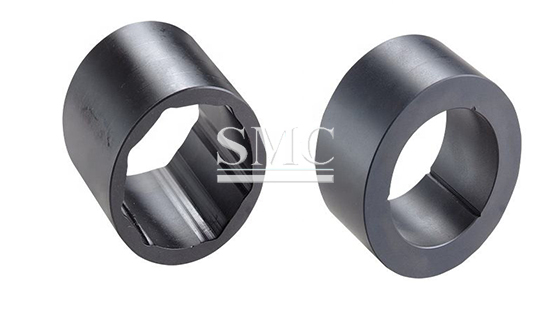

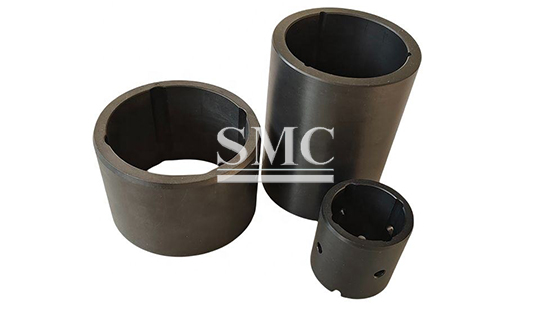

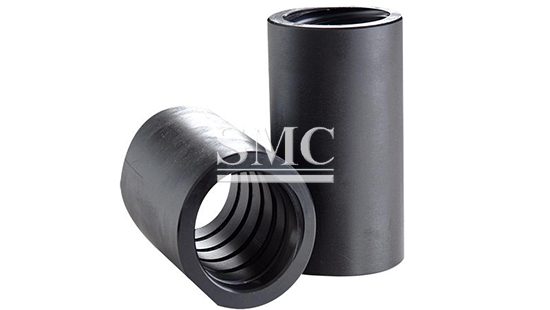

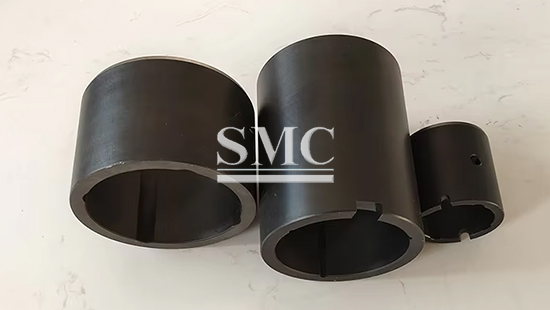

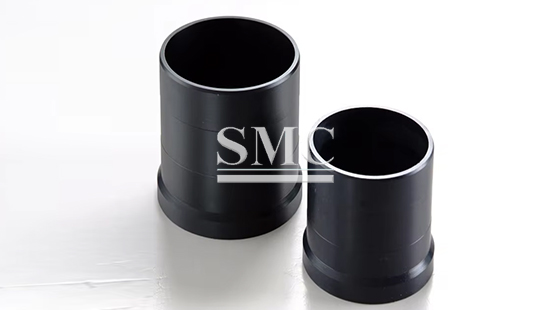

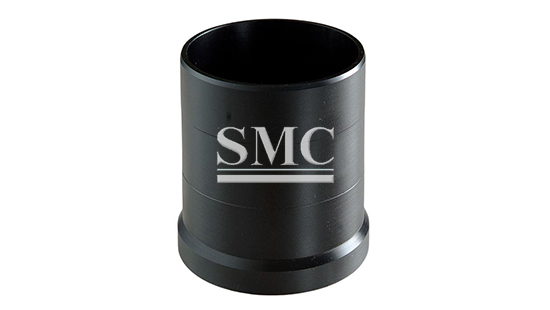

PEEK Shaft Sleeve/Bushes

Material: PEEK/PEEK+CF30/PEEK+PTFE+GF

Color: Nature, black

Size: Customized

Product Detail | Technical Information | Packaging

Product Detail

Shanghai MAC is a leading manufacturer and supplier of PEEK Shaft Sleeve/Bushes.

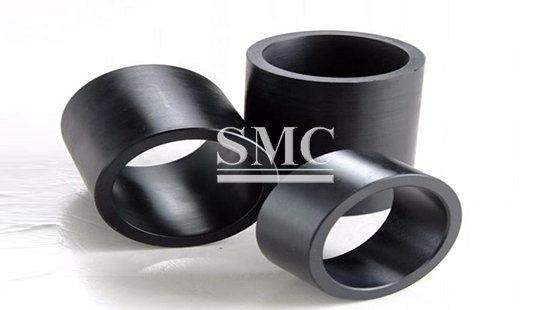

The PEEK bushing is precisely manufactured using pure polyetheretherketone (PEEK) and modified formulations. It maintains excellent dimensional stability and mechanical strength under harsh conditions. It can widely replace copper bushings and composite material bushings, and is particularly suitable for high-temperature, vacuum, and corrosive environments.

If you want to know more about PEEK Shaft Sleeve/Bushes or other related PEEK products, please feel free to contact us, we will reply you within 24 hours.

1.Maximum continuous operating temperature: +250°C (up to 310°C for short periods)
2.Density: 1.25 – 1.45 g/cm³
3.Friction coefficient (dry): 0.1 - 0.3 μ (lower for reinforced grades)
4.Compressive strength (23°C): 120 – 150 MPa
5.Bending modulus: 3.5 – 10 GPa (depending on reinforcement)

6.Absorption rate (24 hours): < 0.1%
7.Flame retardant grade: UL94 V-0 (no dripping)
8.Applicable shaft materials: hardened steel, stainless steel, aluminum, ceramics
*Customized sizes are available: inner diameter ranging from 3mm to 300mm, with flanges or straight sleeves, as well as versions with grooves and oil holes.

High temperature resistance: The heat distortion temperature is as high as 315°C. It can operate stably at 260°C for a long time, maintaining high rigidity and low creep.
Self-lubricating: Extremely low friction coefficient, no need for grease lubrication, avoids contamination, suitable for food, textile, and medical equipment.
Chemical resistance: Resistant to almost all organic/inorganic solvents, acids, bases and environments except concentrated sulfuric acid. Suitable for chemical pumps and valves.

Dimensional stability: Low moisture absorption, extremely low thermal expansion coefficient, does not deform in humid environments, suitable for precise fitting.
Low Friction coefficient: Possesses excellent resistance to wear and scratching, low-noise operation. By adding carbon fiber/graphite reinforced grades, it can be applied to high-load conditions.
Lightweighting: The density is only half that of aluminum, significantly reducing the inertia of moving parts, making it suitable for high-speed applications.

Semiconductor equipment: Resistant to high temperatures, clean, and corrosion-resistant.
Aerospace: Lightweight, resistant to extreme temperatures.
Automotive industry: Transmission, braking system.
Medical devices: Sterilizable, self-lubricating.
Chemical pumps and valves: Resistant to acids and alkalis, maintenance-free.
Packaging machinery: High-speed operation, oil-free.
Textile machinery: Low noise, wear-resistant. The robot joints are smooth and the back clearance is small.

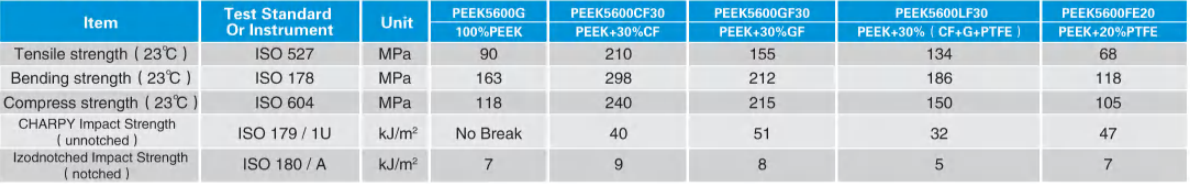

Mechanical performance

Mechanical performance

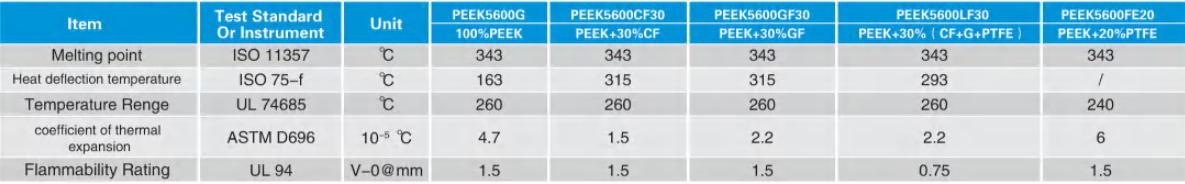

Thermal performance

Thermal performance

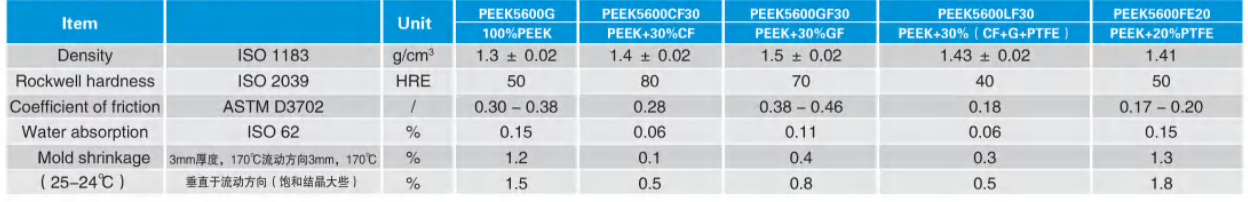

Electrical performance

Electrical performance

The data is for reference only. There may be differences among different batches. The actual production and delivery shall prevail

Packaging of PEEK Shaft Sleeve/Bushes

Shanghai Mac Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. Paper carton, Pearl cotton carton, Wooden Case is adopted. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Mac Standard

2) Customization

packing
