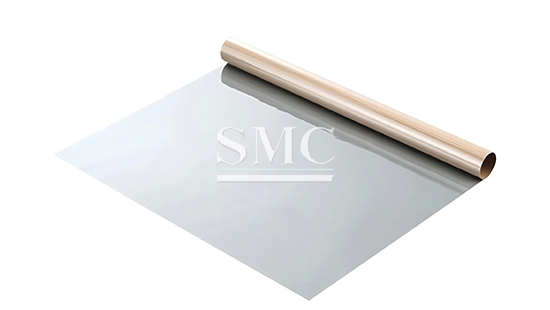

PFA Film

Material: Perfluoroalkoxy (PFA)

Color: Transparent or translucent

Product Detail

Product Detail

Shanghai Metal Corporation is a leading PFA film manufacturer and supplier.

PFA film refers to a thin film made from perfluoroalkoxy alkane (PFA), a high-performance fluoropolymer developed by DuPont (often under the brand name Teflon™ PFA). It combines the excellent thermal, chemical, and electrical properties of PTFE (Teflon) with improved thermoplastic processability, making it suitable for precision applications that demand high purity, chemical resistance, and heat stability.

PFA films are transparent, flexible, and have an ultra-smooth, non-stick surface.
If you want to know more about our PFA film products or price please feel free to contact us, we will reply you within 24 hours.

Thickness range: 0.01 mm to 1.0 mm (10 µm to 1000 µm)
Melting point: ~302°C (576°F)
Tensile strength: ~30 MPa (varies with grade and thickness)
Dielectric strength: > 60 kV/mm (depends on thickness)
Elongation at Break: ~300–400%
Water Absorption: < 0.01%
Flame Rating: UL 94 V-0

Excellent Chemical Resistance: Resists almost all acids, bases, solvents, and corrosive gases.
High-Temperature Stability: Continuous use up to 260°C, no deformation or degradation.
High Purity: Ideal for semiconductor and pharmaceutical environments.
Excellent Electrical Insulation: High dielectric strength and low dissipation factor.
UV and Weather Resistant: Durable in outdoor or radiation-exposed environments.
Non-stick Surface: Low surface energy prevents adhesion and contamination.

Chemical Liner Films
Medical Devices
Corrosion Protection
Electrical Insulation
Solar Panels
3D Printing
