3D Laser Measurement Instrument

Series: AR-9010&AR-9025

Maximum Score / 3D Profile: 4096

Scanning rate: Approximately 10 kHz to 40 kHz

Weight: 742g

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is manufacturer and supplier of 3D Laser Measurement Instrument.

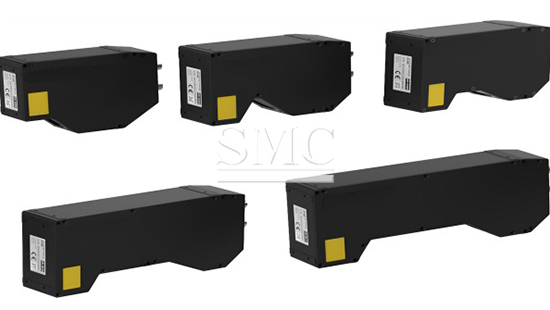

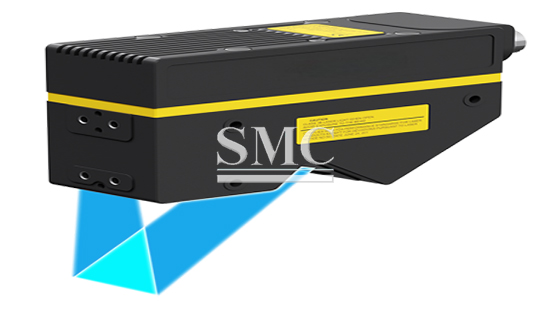

The AR-9000 series is a high-end 3D line laser measurement instrument, with common models being the AR-9010 and AR-9025. It features high-precision sampling at 4096 points per profile under a high-frequency scan rate of 40kHz, accurately capturing the cross-sectional shape of target objects (such as micrometer-level recesses and burrs). The specially tuned blue laser at 450nm enhances imaging contrast, and combined with HDR technology and reflection filtering algorithms, it stabilizes the detection of highly reflective materials (such as shiny metals).

If you have demand of 3D Laser Measurement Instrument, please feel free to contact with us, we will reply you within 24hours.

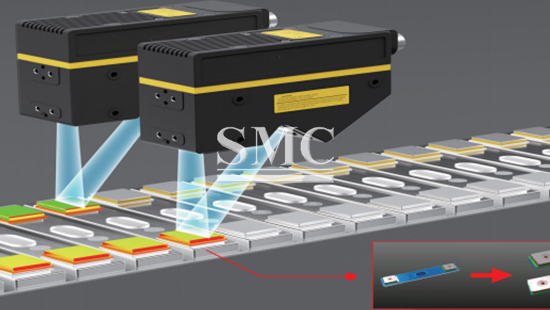

New Energy Industry: Measurement of flatness for lithium battery terminals, quality inspection of glue application on Pack chassis, detection of welding defects on the top cover, and measurement of the depth of electrode strip scribing.

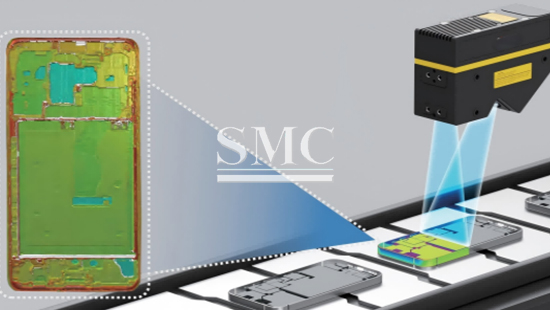

In the 3C Electronics Industry: Measurement of flatness for mid-frame/buttons, detection of segment differences for Type-C interfaces, measurement of gaps in screen borders, and size inspection of camera module brackets.

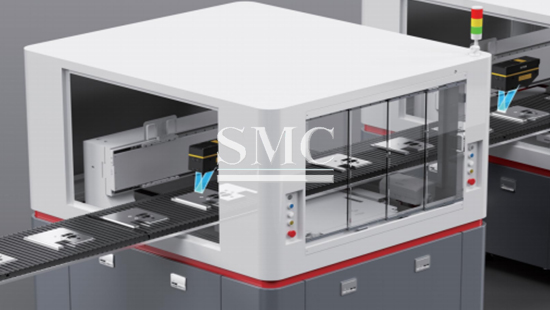

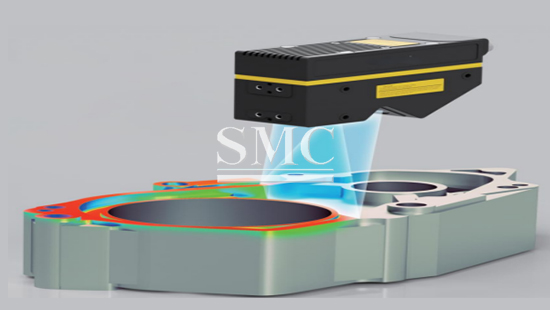

In Automotive Manufacturing: Measurement of flatness for engine housings, height measurement of pins, coplanarity inspection of connectors, character recognition (OCR), and detection of glue application trajectories.

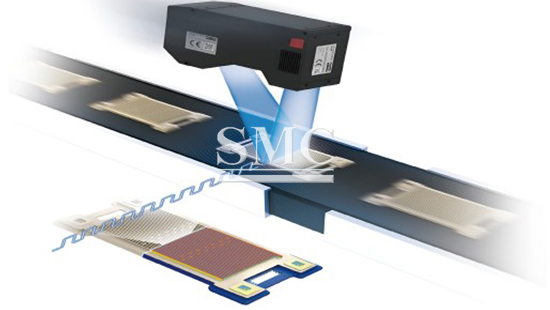

In some precision machining industries: Detection of segment differences in workpieces, multi-position height difference measurement, measurement of flatness, as well as defect inspection (burrs/cracks/deformations).

Ultra-high precision :4096 points/profile)
Ultra-fast scanning: 40kHz

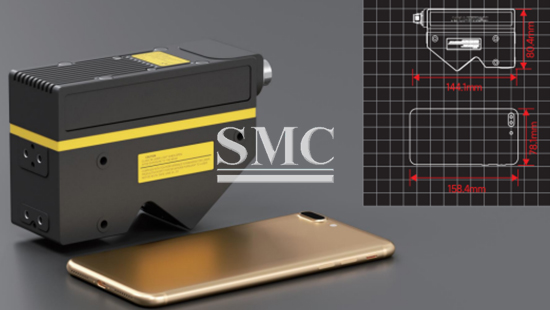

Ultra-compact design: compact optical path structure (body thickness only 15.4–18.4mm), easy to integrate into automated production lines.
Intelligent algorithm support: HDR technology combined with reflection filtering algorithms, enabling stable detection of highly reflective materials (such as shiny metals).

	AR-9010	AR-9025
Scope of Vision (Near \| Mid \| Far)	10.5 \| 11 \| 12 mm	22 \| 25 \| 29 mm
Measurement range	5mm	20mm
Optimal working distance	25mm	65mm
Vertical Resolution (Z)	0.3-0.4mics	0.9-1.4mics
Horizontal Resolution (Y)	2.5-3.0mics	5.0-7.0mics
Z linearity	0.02%	0.01%
Z repeatability	0.1mic	0.2mics

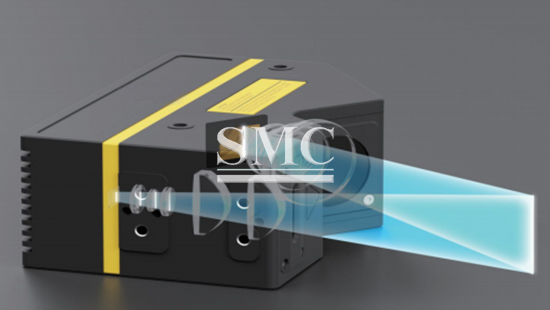

Laser Wavelength	450 nm (Intelligent Blue Light)
Laser Level	2 \| 3R
Maximum Score / 3D Profile	4096
Weight	742g
Scanning rate	Approximately 10 kHz to 40 kHz

	AR-9010	AR-9025
Interface	Gigabit Ethernet (1 gigabit per second)
Input Port	Two input ports, 5 - 24 volt DC input, orthogonal encoding input ports (AB channel, RS-422 standard)
Output Port	2 output ports, 24 volt direct current output (maximum 20 milliamps)
Trigger	The following trigger signals are supported:
	Inputs 1-2 support startup triggering
	Orthogonal encoded input supports data triggering ( Max. data trigger rate : 1 MHz)
	Input port 2 supports data triggering ( Maximum data trigger rate : 10 kHz ~ 40 kHz)
Input Voltage \| Power Supply	24 V DC input, ±15% \| 10 Watts
Laser Safety Input	24V DC Input \| 0V
Protection Level	IP65.
Air Humidity	Below 90%, no condensation.
Working/Storage Temperature	0 – 40°C \| -20 – 70°C

Packaging of 3D Laser Measurement Instrument

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
