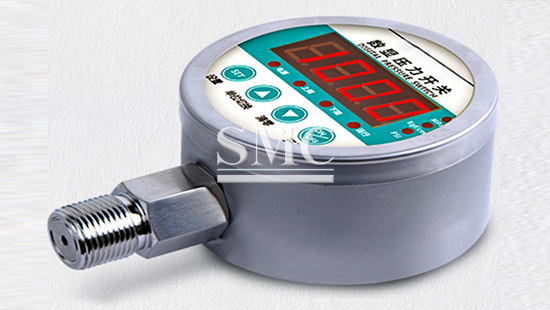

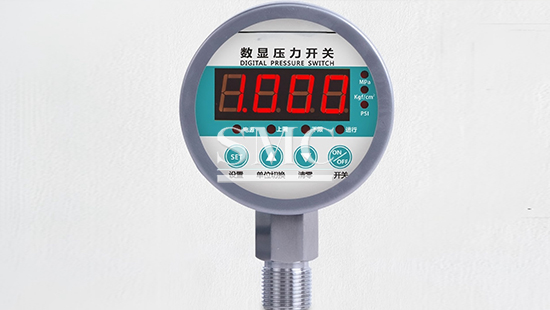

Product Name: Digital Pressure Switch
Series: MIK-Y210
Power supply voltage: 24VDC、220VAC、380VAC
Method of Reporting an Incident: Dual group relay signal (each group has normally open and normally closed contacts)
Alarm point setting: The entire range can be set to any point.
Control Signal: Dual-channel relay signal
Load capacity: 24VDC 3A /220VAC 3A
Installation of threads: M20*1.5、G1/2、G1/4
Measurement medium: Media such as gas, oil, and water that are non-corrosive to 304 stainless steel.

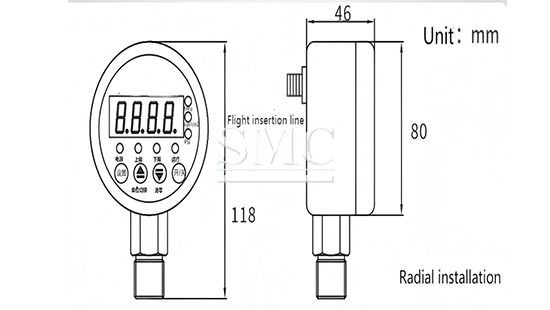

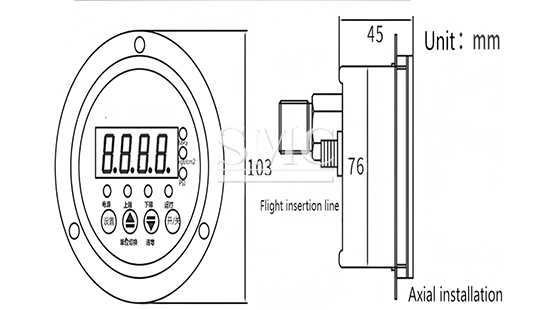

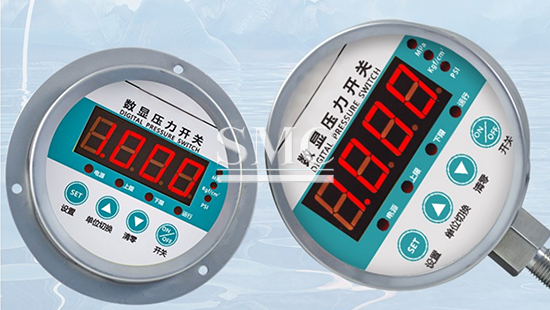

Installation Method: Axial and radial options are available.

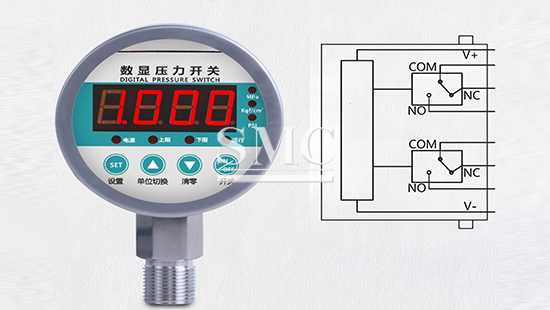

Wiring Definition: The power supply is red and blue, high alarm is green, low alarm is yellow, and the common terminal is black.

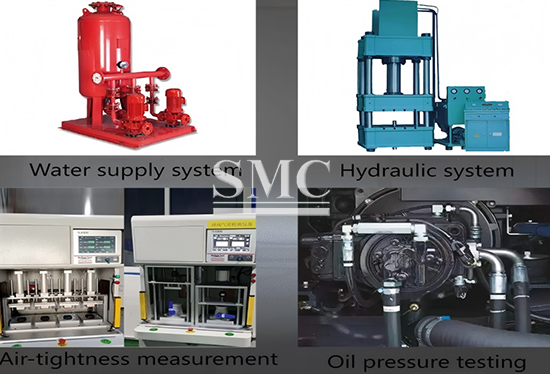

1)Industrial Process Control and Automation
2)Hydraulic and Pneumatic Systems
3)Water Treatment and Supply Systems
4)Mechanical Equipment and OEM Support
5)Energy Industry: In the process of electricity production
6)Intelligent Buildings and Building Automation

1) Accurate Measurement and Intuitive Display
2) Intelligent Control and Alarms
3) Remote Signal Transmission and Integration
4) Enhancing Efficiency and Reliability
