Packing Volume: 500-100ml; 1000-500ml
Air Pressure: 0.65Mpa
Weight: 700Kg
Packaging material: PE film
Shanghai Mac is a leading Automatic Liquid Packaging Machine manufacturer and supplier.

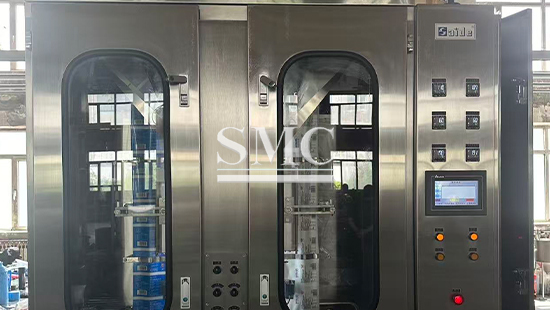

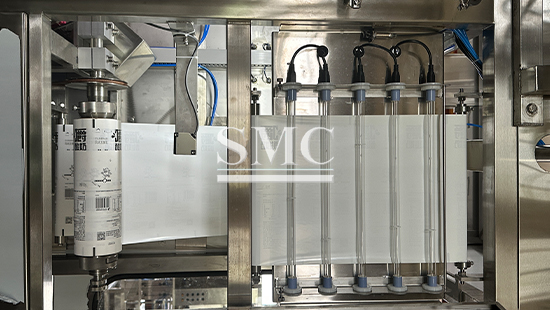

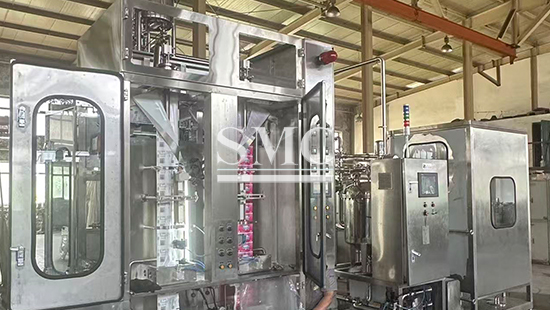

This Class 100 clean, back-seal, dual-head fully automatic liquid packaging machine is specially designed for packaging liquids and viscous materials requiring high packaging environment cleanliness. Equipped with a top-mounted Class 100 laminar flow purification device, UV sterilization for packaging films, and a CIP automatic circulation cleaning system, it ensures full-process sterile packaging. The machine adopts a modular stainless steel structure, servo-pneumatic transmission, and PLC + HMI intelligent control system, and can automatically complete bag making, filling, metering, sealing, date printing and other processes. It is suitable for packaging pasteurized milk, yogurt, juice, soy milk, liquid seasonings, egg liquid and other products, featuring high cleanliness, wide capacity adjustment range, high speed, high metering accuracy, stable operation and easy operation, ideal for large-scale food and beverage production.
If you want to know more about our Automatic Liquid Packaging Machine price please feel free to contact us, we will reply you within 24 hours.
Technical Information of Automatic Liquid Packaging Machine:
|
Technical Parameters of Automatic Liquid Packaging Machine |
|
|
Capacity |
90-134 bags/min; 50-90 bags/min |
|
Pcking Volume |
500-100ml; 1000-500ml |
|
Width of film |
240~350 mm |
|
Accuracy |
±0.5~1% |
|
Air Pressure |
0.65 MPa |
|
Air Consumption |
1.0m³/min(0.8Mpa) |
|
Power Supply |
AC220V±10% 50Hz |
|
Maximum Power |
3.5KW |
|
Dimensions |
1700(L)X1600(W)X3300(H) mm |
|
Weight |
700 Kg |

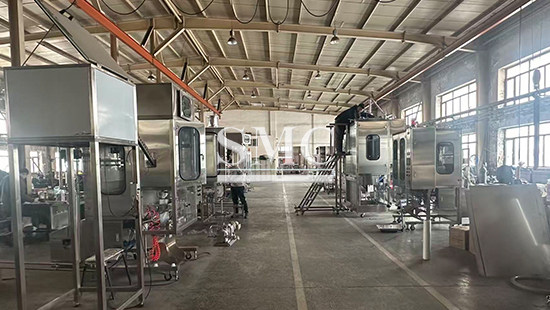

Packaging of Automatic Liquid Packaging Machine:
