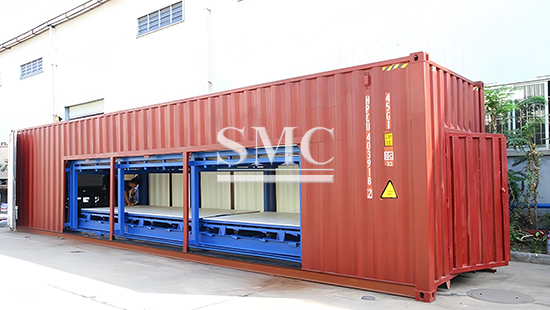

Containerized Block Ice Machine

Output:Capacities of 5t, 7.5t, 10t, 15t, 60t available

Size:Available in 40HC or 45HC containers

Application:Widely used on marine platforms, in warehouses and factories

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac Corporation is a leading manufacturer and supplier of Containerized Block Ice Machines.

Our Containerized Block Ice Machines are ingeniously designed. They are built with high - quality refrigeration components and a modular structure. With large ice - making capacities, including 5 - ton, 7.5 - ton, 10 - ton, 15 - ton and 60 - ton options, they can meet various industrial demands. Their containerized design makes them highly mobile, easily transportable to different locations. Installation is a breeze as they come with pre - assembled parts and user - friendly interfaces, allowing for quick setup at the worksite. Whether it's in a marine platform, warehouse or factory, these ice machines can adapt well to different environments.

If you want to know more about our Containerized Block Ice Machines, please feel free to contact us. We will reply you within 24 hours.

Volume: Available in 20HC, 40HC, 45HC container sizes Ice - making .
Ice - making Capacity: Tailored to different demand levels, with options like 5ton, 7.5ton, 10ton, 15ton and 60ton .
Voltage: Can be customized according to different countries' requirements, with options of 380V/400V/220V, 50HZ/60HZ .

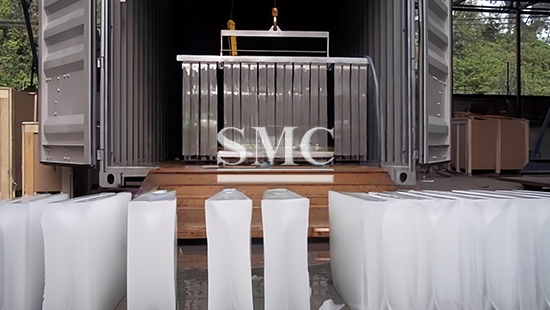

Block Ice Size: Available in 12.5kg, 20kg, 25kg, 50kg sizes.

Mobility: Quick relocation, highly maneuverable for various sites.
Installation & Transportation: Easy to install and transport, hassle - free.
Structure: Modular for easy assembly, disassembly, and customization.
Ice - making Capacity: Ultra - large to meet high demands.
Appearance: Aesthetic, merging functionality and appeal.

Food Industry: Used for food refrigeration, rapidly freezing meats, fruits, etc.
Warehousing: Ideal for maintaining cold storage in warehouses.
Industrial Cooling: Helps in industrial processes that require temperature reduction.
Construction Projects: Enables quick cooling in construction engineering.

Technical Information of Containerized Block Ice Machine:

Project		Unit	Technical parameters
Enterpower supply		Voltage/Phase/Hertz	380V/3P/50Hz 400V/3P/60Hz
Refrigerant		-	R22 orR404A
Produceicequantity		Kg/day	15000
Cooling method		-	Water cooling
Temperature	Ringterritorytemperature	℃	35
Temperature	Inlet water temperature	℃	20
Running powerRate	Total operating powerRate	Thousandwatt	59.15
	Installed power	Kilowatt	75
	Cool downTower wind turbine	Thousandwatt	1.5
	Cooling water pump	Thousandwatt	5.5
	Chilled water pump operating power	Thousandwatt	0.75
PressureShrinkmachine	Systemmakebusiness		Bitzer
	Refrigerationquantity	Thousandwatt	118.2
	Running powerRate	Thousandwatt	51.4
	CompressorCOP/EER	Kw/kw	2.3
	Matcheffect	Hp	40×2 units
Working hours	When making icebetween	Hour(h)	7.5
Working hours	De-icing time	Hour(h)	0.5
Shapesize	PieceIce specifications	Kg/piece	50
	Dimensions of a block ice machine	(Length × Width × Height) (mm)	480×160×700
	Generator module external dimensions	(Length × Width × Height)()(mm)	2000×1200×1600
	Number of evaporator modules		3indivual
	Evaporator module dimensions	(Length × Width × Height)mm)	4800×1000×2200
	Cooling tower external dimensions	(Outer diameter x Height) (mm)	φ2175×2565
	ColdQueta water supply pipe dimensions	-	3/4(3/4)
	Cooling water pipe size	-	4 inches (4")
	Ice maker water inlet pipe size	-	1-1/4 inch(1-1/4)
Running weight	MachineGroup	Kilogram	2160
	Evaporationinstrument	Thousandgram	2860
	Cooling tower	Kilogram	1120
Water supply pressure shouldbeg		Bar	1

Packing of Containerized Block Ice Machine:

Whole container
