Specs: 5.6–7.2t unit weight, 150–420mm pile diameter.

Dimension: 5500×2200×2600mm, fits 40HC container.

Application: Designed for desert PV stations, energy storage & mining projects.

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac is a leading manufacturer and supplier of Desert Solar Pile Drivers.

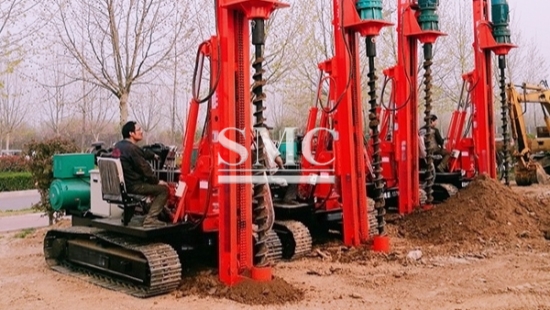

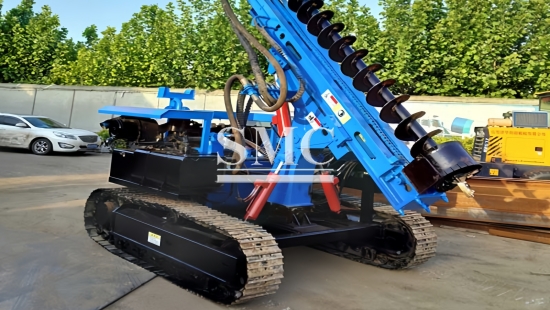

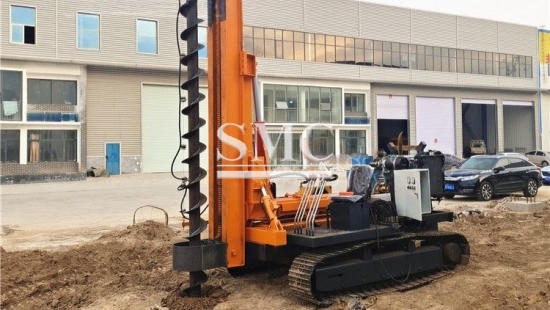

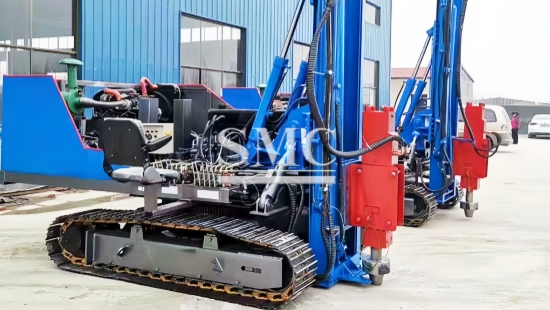

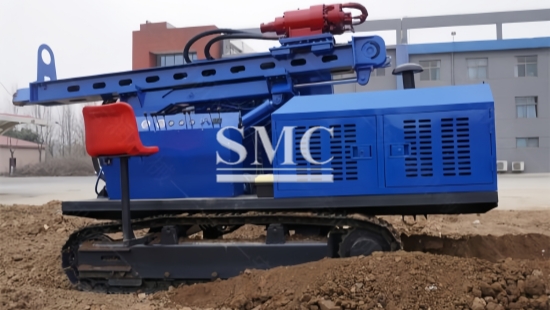

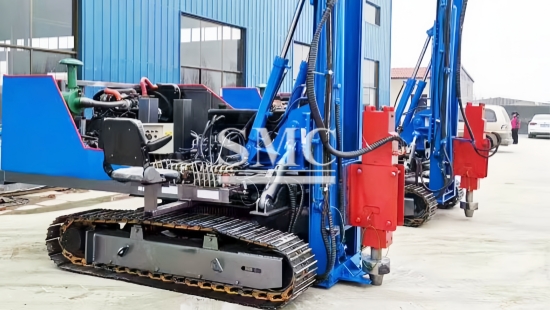

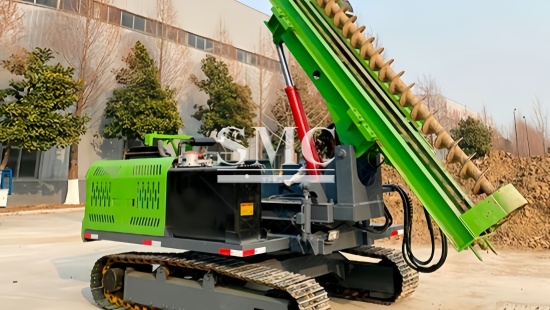

Our Desert Solar Pile Drivers are elaborately engineered for harsh wilderness conditions. They are equipped with wear-resistant hydraulic parts and a reinforced crawler integrated structure. Multiple mature models covering 5.6t, 6.5t and 7.2t weight classes are available, capable of meeting various large-scale PV construction demands. The compact tracked design enables convenient containerized sea transportation and flexible cross-site movement. Operation is extremely user-friendly with intelligent laser positioning and one-key self-adjustment systems, allowing rapid commissioning at remote desert job sites. Whether deployed on desert PV bases, energy storage yards or mining off-grid projects, these pile drivers deliver stable performance under high temperature and sandy environments.

If you want to know more about our Desert Solar Pile Drivers, please feel free to contact us. We will reply you within 24 hours.

Transport Package: Fits 40HC standard shipping container.
Piling Depth: Multiple options of 3m, 6m, 8m and 9m for various desert PV projects.
Drilling Diameter: Available in 150mm, 220mm, 320mm and 420mm.

Mobility: Crawler travel design, flexible moving on desert sandy ground.
Installation & Transportation: Integral machine, convenient to load into container for shipment.
Structure: Reinforced dustproof structure, easy maintenance and regional customization.
Piling Performance: Strong torque to adapt to sand, gravel and hard soil layers.
Appearance: Robust industrial design, high temperature and sand resistant coating.

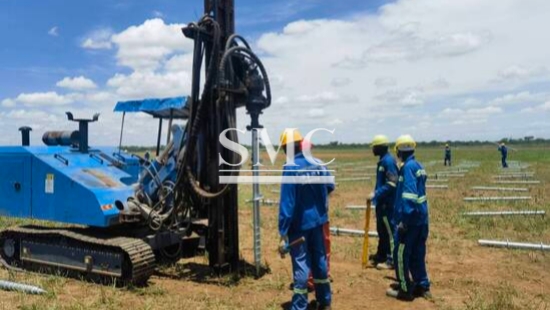

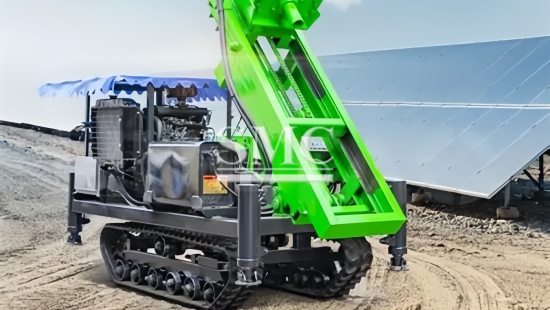

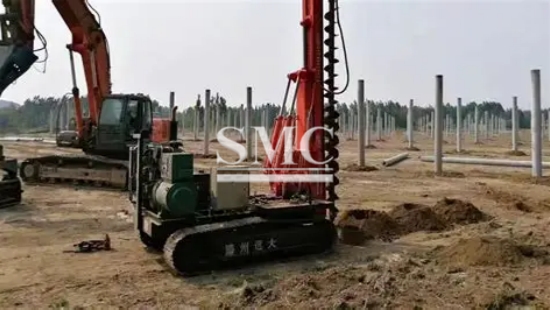

Desert PV Base: Used for mounting spiral ground screws of large photovoltaic arrays.
Energy Storage Yard: Ideal for piling foundation of storage container equipment.
Green Hydrogen Plant: Constructing steel pile bases for factory supporting frames.
Mining Zones: Completing piling work for off-grid mining photovoltaic systems.

Technical Information of Desert Solar Pile Driver:

Model	Total Weight (t)	Transport Dimension (L×W×H, mm)	Container Compatibility
HXR5	4.5	5200×2000×2400	40HC
HXR7	6.5	5350×2150×2500	40HC
GFHY-5000	5.2	5100×2050×2350	40HC
SYDZ600	5.6	5300×2100×2450	40HC
SYDZ720	7.2	5500×2300×2700	40HC
XGR600PV	6.8	5450×2250×2600	40HC
SWDL600F	6.5	5400×2200×2550	40HC
Max Drilling Depth (m)	Drilling Diameter (mm)	Power Head Torque (N·m)	Engine Power (kW)
6	150-350	2200	58
6	150-400	8000	90
5	90-400	2600	65
8	150-420	2800	70
9	150-420	3500	92
6	120-420	3000	97
6	150-400	3100	86

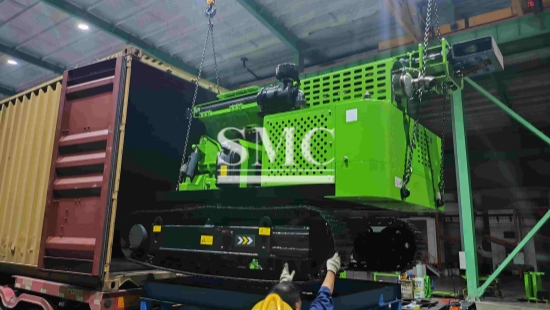

Packing of Desert Solar Pile Driver:

40 HC Container
