Volumetric flow: 200-1450Nm³/h

Intake pressure: 0.02-20Mpa

Exhaust pressure: 1.5-45Mpa

Unit weight: 9500-15000kg

Product Detail | Technical Information | Packaging

Product Detail

Shanghai MAC is a leading diaphragm compressor supplier.

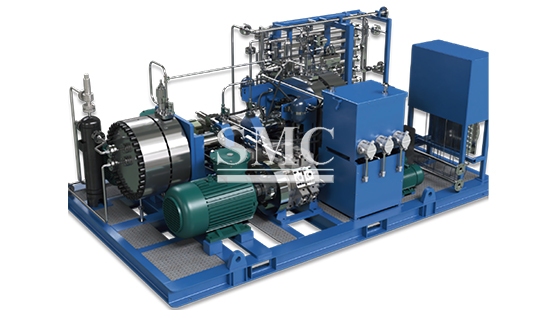

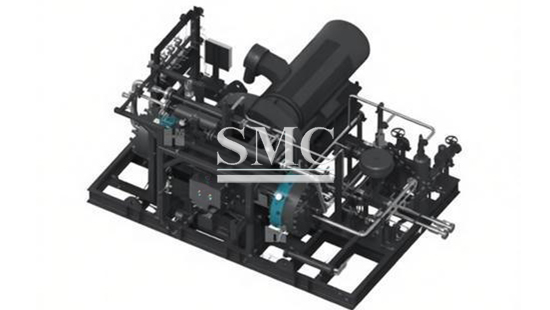

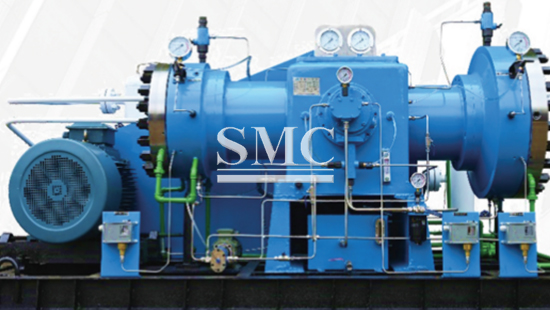

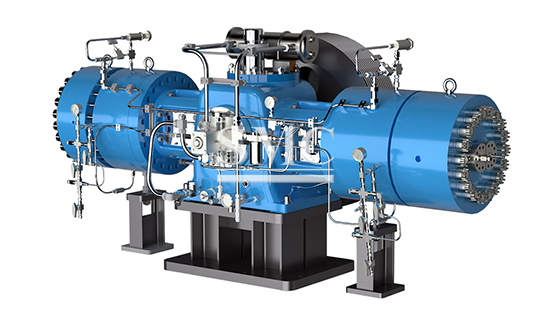

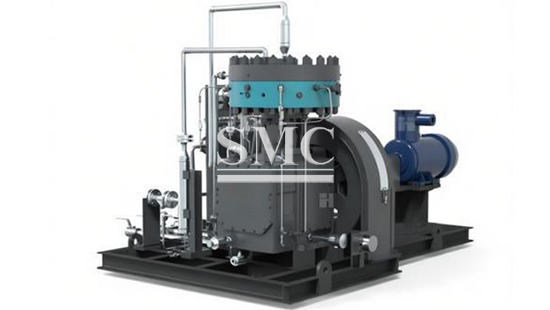

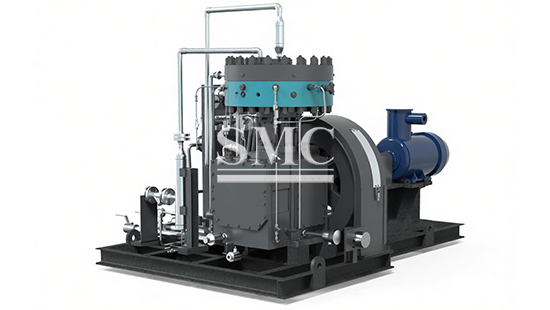

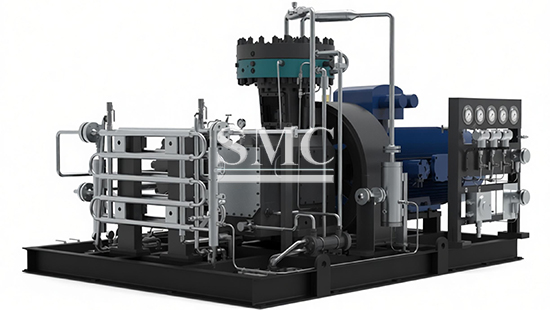

A diaphragm compressor is a special type of positive displacement compressor. Its core principle is to completely isolate the compressed gas from the hydraulic drive system through a flexible metal diaphragm, thereby achieving oil-free, pollution-free, and zero-leakage gas compression.The gas does not come into contact with the lubricating oil, ensuring extremely high gas purity, while also possessing excellent sealing properties to prevent media leakage.

If you want to know more about our diaphragm compressor, please feel free to contact us, we will reply you within 24 hours.

1. Volumetric flow: 200-1450Nm³/h
2. Intake pressure: 0.02-20Mpa
3. Exhaust pressure: 1.5-45Mpa
4. Unit weight: 9500-15000kg
5. Rotational speed: 300~450 r/min
6.Shaft power / Motor power: 15~160 kW

1. Compression Stages: Single-stage/multi-stage compression. Multi-stage compression is used for high-pressure applications, typically 2-5 stages, suitable for hydrogen refueling stations and industrial high-purity gas pressurization.
2. Cooling Method: Water-cooled/air-cooled. Water cooling is more efficient and suitable for continuous high-pressure applications.
3. Diaphragm Material: A core component, commonly made of stainless steel, Hastelloy, or titanium alloy, determining corrosion resistance and lifespan.
4. Explosion-proof Rating: Explosion-proof standards for handling flammable and explosive gases, such as Ex dⅡBT4 or Ex dⅡCT4.
5. Sealing Type: Fully isolated diaphragm, achieving zero leakage and meeting safety standards for flammable, explosive, and toxic media.

1. Hydrogen Energy Industry: Hydrogen filling at hydrogen refueling stations, hydrogen production mother stations/industrial hydrogen pressurization, hydrogen storage and transportation.
2. Fine Chemical and Fluorochemical Industries: Toxic/corrosive gas compression, fluorochemical process support, catalyst gas transportation.
3. Specialty Gases and Electronics Industry: High-purity/rare gas compression, electronic specialty gas preparation, laboratory/research gas pressurization.
4. Pharmaceutical and Pesticide Industries: Sterile gas transportation, pesticide intermediate synthesis.
5. Military and Nuclear Power Industries: Nuclear industry gas handling, aerospace specialty gases.
6.Other Special Operating Conditions: Compression of flammable and explosive media, high-pressure process system support.

Technical Information Of Diaphragm Compressor:

Core Performance Parameters
Parameter (English)	Definition & Standard Range (English)	Typical Model Reference (English)
Suction Pressure	Gas pressure at the equipment inlet, supporting negative pressure, normal pressure or medium pressure gas source	1.4~1.8 MPa (Hydrogen filling condition)
Discharge Pressure	Maximum working pressure at the equipment outlet, determining compression capacity	22.0 MPa (Hydrogen station model), customizable up to 100MPa+
Displacement / Flow Rate	Gas delivery volume under standard conditions (20℃, 101.3kPa)	500~1000 Nm³/h (DHD Series)
Compression Ratio	Ratio of discharge pressure to suction pressure, single-stage economic compression ratio 4:1~8:1, up to 20:1 for special structures	Multi-stage compression design, single-stage compression ratio controlled within safe range, suitable for high pressure difference conditions
Rotational Speed	Rated speed of crankshaft, usually 300~500 r/min for hydraulic drive models	300~450 r/min (Haimai mainstream models)
Shaft Power / Motor Power	Driving power required for equipment operation, directly related to flow rate, pressure and medium	15~160 kW (Matched according to working conditions)
Medium Purity	Purity index of compressed gas, oil-free design can achieve more than 99.999%	Under hydrogen compression condition, no oil pollution, purity retention rate ≥99.999%
Structure & Operating Condition Parameters
Compression Stages	Single-stage / multi-stage compression, multi-stage for high pressure conditions, usually 2~5 stages	Modular multi-stage compression design, suitable for hydrogen stations and industrial high-purity gas boosting
Cooling Method	Water cooling / air cooling, water cooling has higher efficiency, suitable for continuous high pressure conditions	Mainly water cooling, suitable for continuous operation conditions, controlling compression temperature rise
Diaphragm Material	Core component, usually stainless steel, Hastelloy, titanium alloy, determining corrosion resistance and service life	Multi-layer metal diaphragm, suitable for hydrogen and corrosive gases, service life ≥8000 hours
Sealing Form	Diaphragm fully isolated type, achieving zero leakage, complying with safety standards for flammable/explosive/toxic media	Zero leakage design, equipped with online diaphragm rupture monitoring system
Explosion-proof Grade	Explosion-proof standard when handling flammable and explosive gases, such as Ex dⅡBT4, Ex dⅡCT4	Hydrogen station models comply with ⅡCT4 explosion-proof grade, meeting the requirements of hydrogen medium conditions
Noise / Vibration	Noise (dB) and vibration speed under rated working conditions, industrial grade usually ≤85dB	Low vibration design, noise ≤80dB, suitable for continuous operation environment in factory area

Packing Of Diaphragm Compressor:

Wooden box packing
