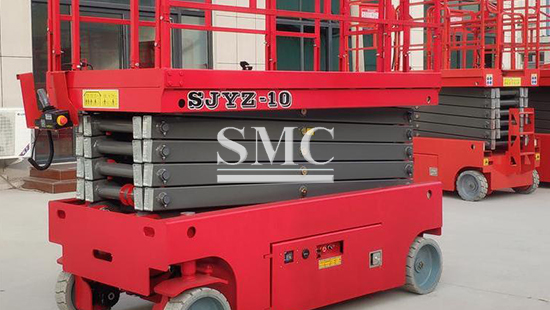

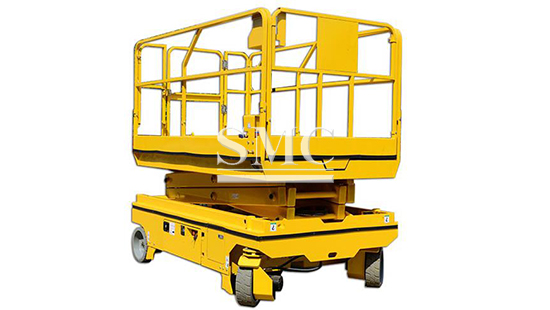

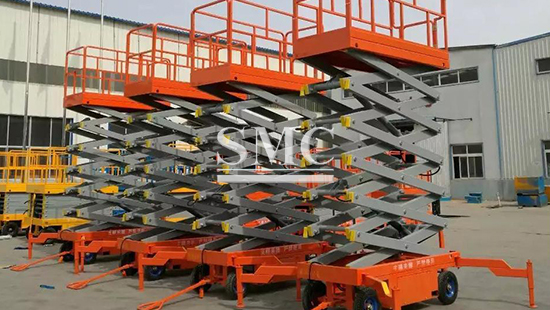

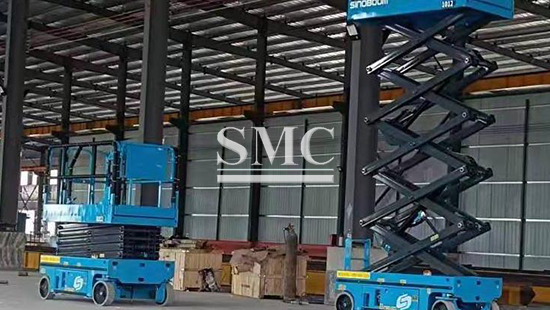

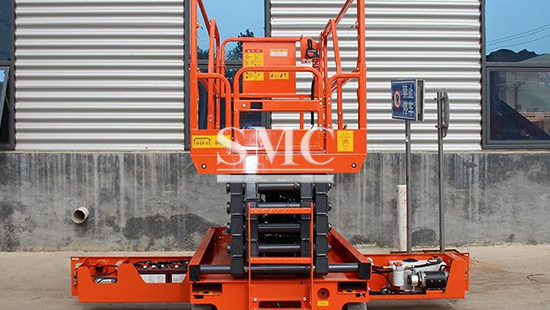

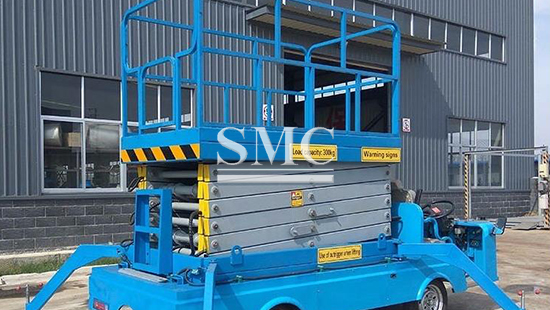

Elevating Platform

    Size: 2100*800,2100*900,2100*1200,2550*1500,3100*1600,2850*1800


    Load:500-2000kg


    Lifted height:4-18m

Shanghai Mac Corporation is a leading of Elevating Platform.

There are two types: mobile (with wheels, can be manually pushed or electrically driven, such as scissor type, crank arm type) and fixed (fixed to the ground, such as the loading and unloading platform next to the workshop assembly line). The mobile model can flexibly adjust the working position, and the crank arm type can also cross obstacles.Protection features are designed for high-altitude scenarios, such as 1.2-1.5-meter-high guardrails around the platform, anti-slip pedals (to prevent people from slipping), emergency descent valves (for manual descent control in the event of a power outage), and some platforms with overload protection (which stops ascent when the rated load is exceeded).

If you want to know more about our elevating Platform price, please feel free to contact us, we will reply you within 24 hours.

Technical Information of Elevating Platform:



size

Maximum working height

22.00m

Maximum platform height H

20.00m

Safe working load

500kg

Extended Platform Safety Workload

150kg

Maxirnum number of employes

3

Wor paffom dimensons (ength x widt x heist0

4×1.5×1.15m

OVeraldimensons of the machine A×8×0

4.64×2.29×3.384m

Deit  tendekghidikegtdrgahk

4.64×2.29×2.528m

Table extension size G

0.9m

Minimum ground clearance

0.26m

Whelbase D

2.85m

performance

Tuming radius inner whel/outer wheel)

3.67      m/6.36m

Lfting motor

48V/5kw

Walking motor

34VAC/1.5KW×4

Drving speed (receiving state)

5km/h

power

Storage battery

24×2V/330ah

Charger

48V/40A

Max Climb Capability

40%

Maximum allowable working angle

1.5°/3°
