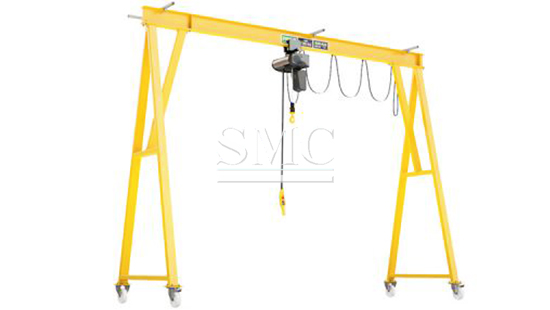

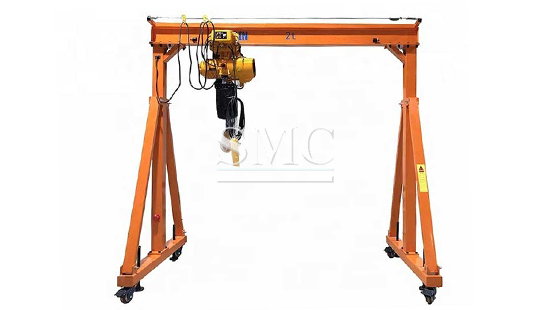

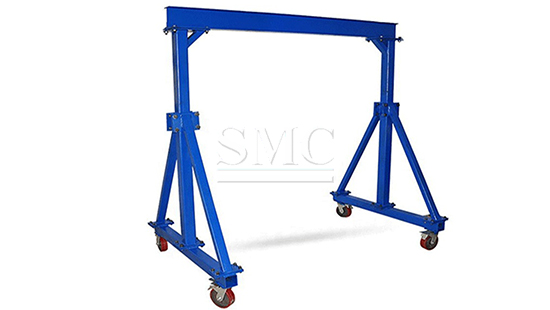

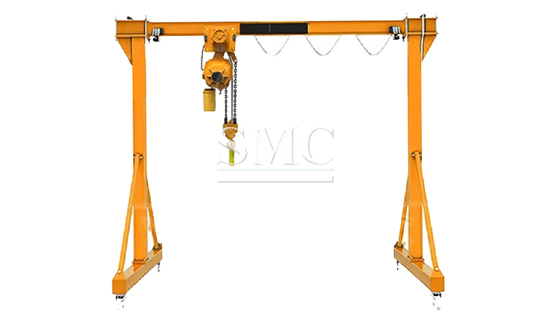

Portable Gantry Crane

Capacity: 0.5-2 Ton

Span: 2-6 Meter

Beam Type: Single I-Beam or Double I-Beam

Material: High-Strength Steel

Surface Treatment: Powder-Coated / Painted

Product Detail | Technical Information | Packaging

Product Detail

SHANGHAIMAC is a leading Portable Gantry Crane manufacturer and supplier.

Portable Gantry Crane is the ultimate solution for flexible and cost-effective lifting needs across your workshop, warehouse. Designed for easy assembly and mobility without permanent installation, this crane provides powerful lifting power right. Ideal for loading/unloading, equipment maintenance, and material handling tasks.

If you want to know more about our Portable Gantry Crane price or other Construction Machinery products please feel free to contact us, we will reply you within 24 hours.

Easy Mobility and Setup
Adjustable for Versatility
Robust and Durable Construction
Safety Guaranteed
Cost-Effective Solution

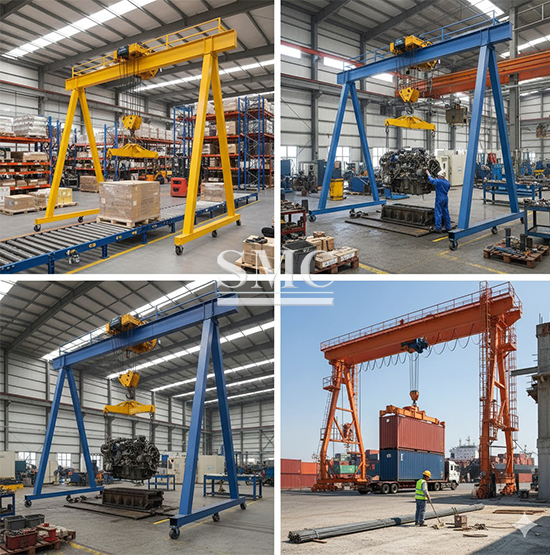

Warehouse and Logistics
Machinery Maintenance or Repair Shops
Manufacturing Plants and Workshops
Shipping Yards and Freight Stations
Construction Sites

Technical Information of Portable Gantry Crane :

Parameter	Model: SMC-PGC-05	Model: SMC-PGC-10	Model: SMC-PGC-20
Capacity	0.5 Ton / 500 kg	1 Ton / 1000 kg	2 Ton / 2000 kg
Span (Adjustable)	2 - 4 Meters	2.5 - 5 Meters	3 - 6 Meters
Lifting Height (Adj.)	2 - 3.5 Meters	2.5 - 4 Meters	3 - 5 Meters
Beam Type	Single I-Beam	Single I-Beam	Double I-Beam
Wheel Type	4x Swivel Castors with Brakes	4x Swivel Castors with Brakes	4x Swivel Castors with Brakes
Material	High-Strength Steel (S355JR)	High-Strength Steel (S355JR)	High-Strength Steel (S355JR)
Surface Treatment	Powder-Coated / Painted	Powder-Coated / Painted	Powder-Coated / Painted

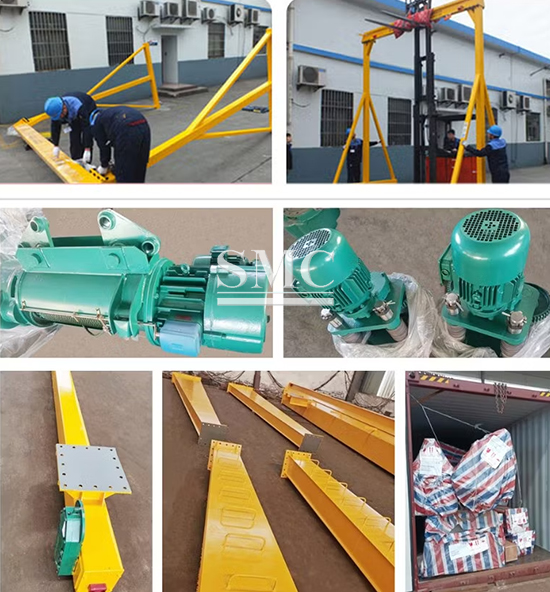

Packaging of Portable Gantry Crane :
