Material: PPSU

Thickness: 1.0-100mm, Customized

Width: 620/1000/1220mm,etc.

Length: 1000/1250/2000/2440,etc.

Surface Finish: Precision-ground, as-extruded, or polished (Ra ≤0.8 μm)

Product Detail | Technical Information | Packaging

Product Detail

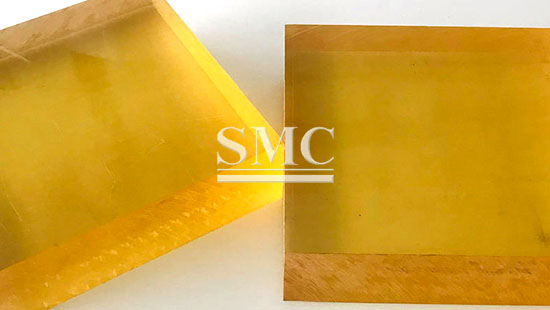

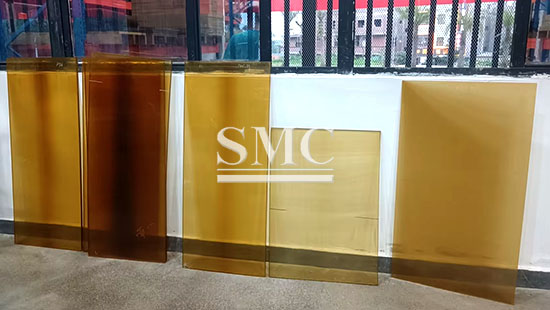

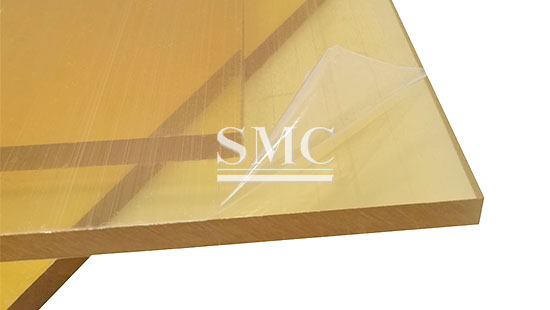

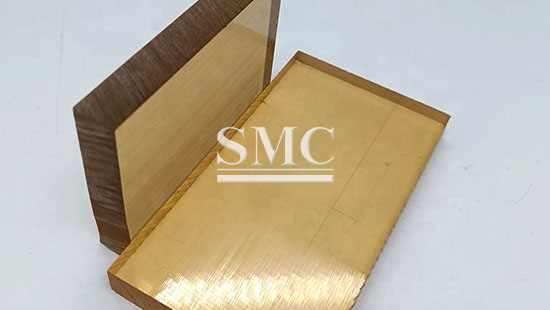

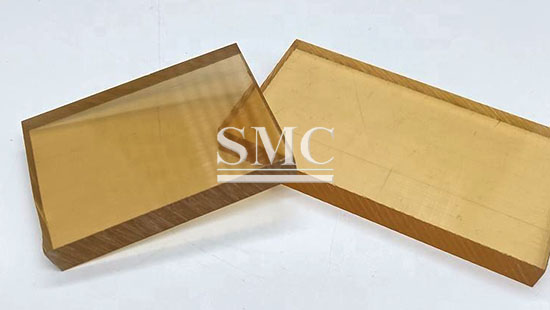

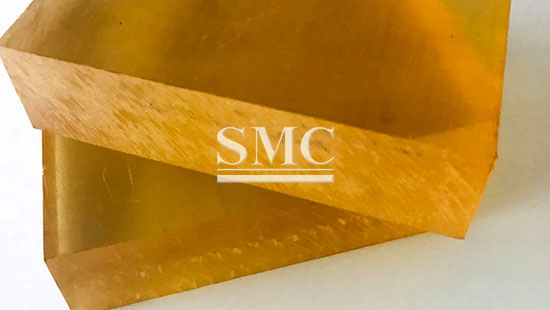

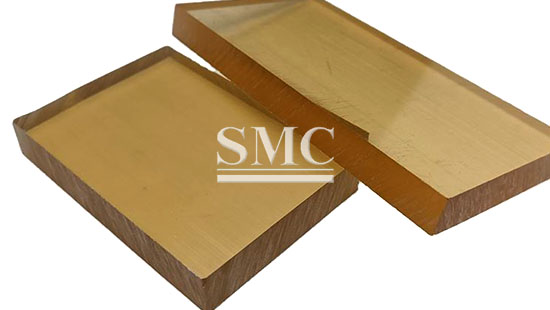

Shanghai Metal Corporation is a leading manufacturer and supplier of PPSU Sheet/Plate.

PPSU is an amorphous, high-performance thermoplastic with outstanding heat resistance, mechanical strength and chemical stability. Compared with PSU and PEI, it has better impact resistance and chemical resistance. After the high-pressure steam sterilization failure test, it was proved that PPSU has excellent hydrolysis resistance, surpassing that of other amorphous thermoplastics. PPSU can be placed in a steam sterilization environment an unlimited number of times, and high-pressure steam is widely used as a sterilization method for medical components, which makes PPSU a good choice for medical equipment. Its synthesis process is similar to that of PSU, with the monomer being 4,4 '-biphenyl diphenol. Its molecular chain contains a large number of biphenyl groups, so its thermal performance is better than that of PSU. Its Tg is about 220℃ and it can be used for a long time in an environment of 180℃.

If you want to know more about PPSU sheet/plate or other related PPSU products, please feel free to contact us, we will reply you within 24 hours.

1.Material: Medical/Food grade PPSU

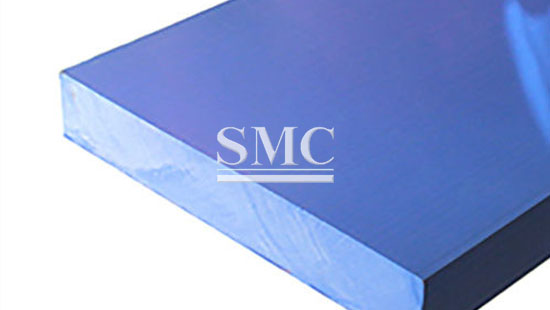

2.Color: Natural amber (transparent), blue, white, black, customized.
3.Thickness: 1.0-100mm, Customized
4.Width: 620/1000/1220mm,etc.
5.Length:1000/1250/2000/2440,etc.
6.Density: 1.29 g/cm3
7.Surface Finish: Precision-ground, as-extruded, or polished (Ra ≤0.8 μm)

1.Outstanding heat resistance: The continuous operating temperature can reach up to 180°C, with a heat distortion temperature of 207°C (1.82MPa), and it can withstand repeated high-temperature steam sterilization
2.Excellent mechanical properties: High strength, high rigidity, excellent impact resistance and dimensional stability, and it can maintain good mechanical properties even at high temperatures
3.Chemical corrosion resistance: It has excellent resistance to a variety of chemicals such as acids, alkalis, alcohols, hydrocarbons and oils, and is suitable for harsh environments
4.Food-grade safety: It complies with food contact safety standards such as FDA and EU 10/2011, is BPA-free, and is suitable for food processing and medical devices
5.Excellent electrical insulation: High insulation strength, low dielectric constant and loss factor, suitable for electronic and electrical applications
6.Environmentally friendly and recyclable: 100% recyclable materials, in compliance with RoHS and REACH environmental protection standards, supporting sustainable production

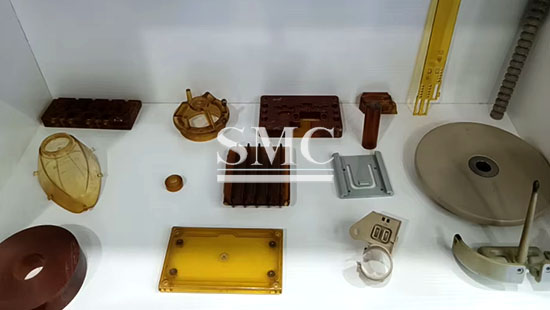

Medical devices: surgical instrument handles, disinfection trays, dental equipment, dialysis equipment components
Food processing: food contact surfaces, dairy equipment, beverage distribution systems, baking equipment
Aerospace: Aircraft interior parts, ventilation ducts, electronic equipment casings, connectors
Electronic and electrical: Circuit breaker housing, connectors, insulating boards, coil bobbings
Water treatment: Filter element housing, valve components, pump body, pipe connection parts
Automotive industry: sensor housings, fuel system components, electrical connectors, interior parts

Physical and mechanical properties
Performance parameters	Value	Test standards
density	1.29 g/cm³	ISO 1183
tensile strength	70 MPa	ISO 527
Bending strength	105 MPa	ISO 178
flexural modulus	2,350 MPa	ISO 178
Impact strength (notched)	70 kJ/m²	ISO 179/1eA
Rockwell hardness	M88	ISO 2039-2
Water absorption rate (24h)	0.37%	ISO 62
Thermal properties
Performance parameters	Value	Test standards
Heat deformation temperature (1.82 MPa)	207 °C	ISO 75
Continuous use temperature	-60 °C to +180 °C	-
Linear thermal expansion coefficient	5.5 × 10⁻⁵ K⁻¹	ISO 11359
Thermal conductivity	0.35 W/(m·K)	ISO 8302
Combustion level	UL94 V-0	UL 94
Electrical properties
Performance parameters	Numerical	Test standards
Volume resistivity	10¹⁶ Ω·cm	IEC 60093
Dielectric strength	16 kV/mm	IEC 60243-1
Dielectric constant (1 MHz)	3.5	IEC 60250
Dissipation factor (1 MHz)	0.003	IEC 60250

Packaging of PPSU Sheet/Plate

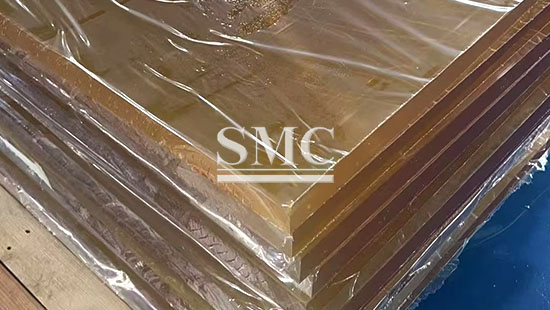

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. Paper carton, Pearl cotton carton, Wooden Case is adopted. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
