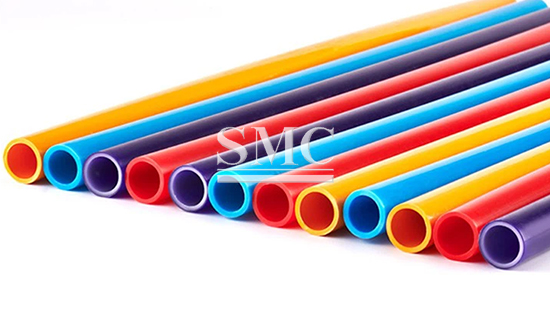

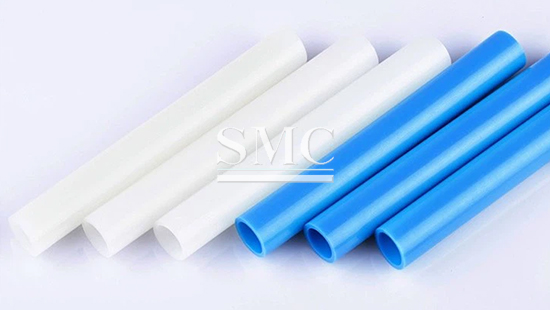

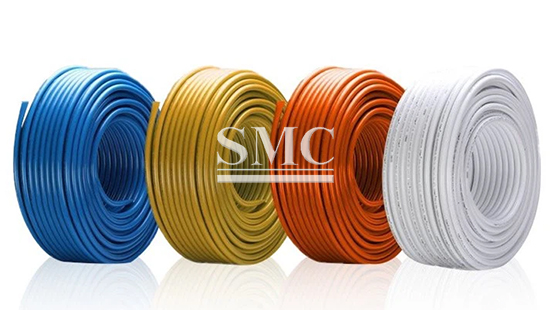

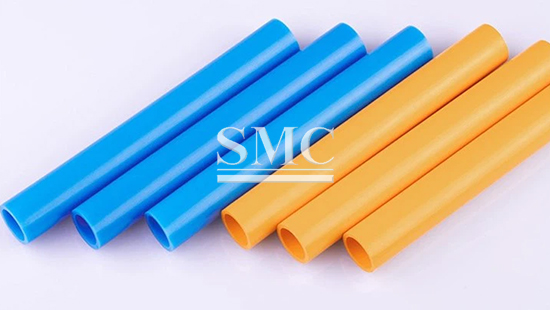

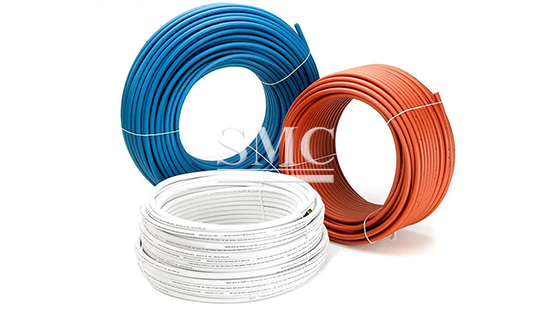

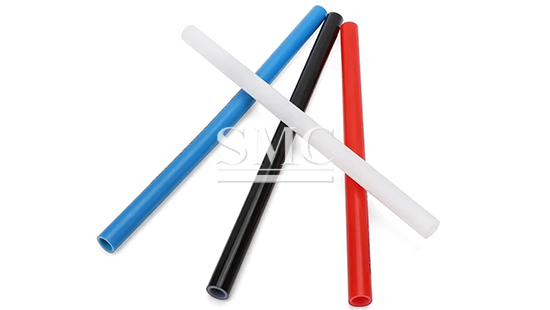

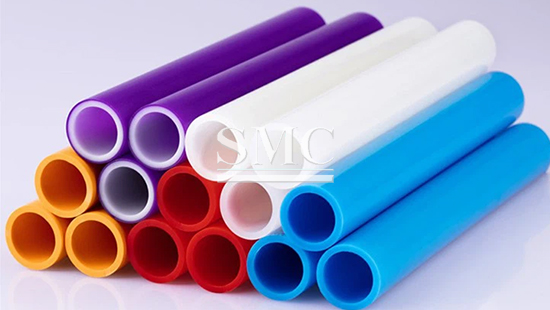

PPSU Tube/Pipe

Material: PPSU

Outer Diameter: Ф5-200mm, Customized

Color: White,Bule,Yellow,Orange,Grey,Red,Purple Or Customized

Type:Single layer pipes or multilayer composite pipes, as request

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac Corporation is a leading manufacturer and supplier of PPSU Tube/Pipe.

PPSU is a high-performance thermoplastic engineering plastic with excellent high-temperature resistance, hydrolytic stability, chemical corrosion resistance, and mechanical strength. PPSU pipes are made from PPSU resin through extrusion molding and are widely used in medical, food, chemical and other fields.

If you want to know more about PPSU Tube/Pipe or other related PPSU products, please feel free to contact us, we will reply you within 24 hours.

1.Material: Medical/Food grade PPSU
2.Color: White,Bule,Yellow,Orange,Grey,Red,Purple Or Customized.
3.Process: Mold extrusion
4.Common Size(ODxWT): 6x1.0, 8x1.2, 10x1.5, 12x1.8, 16x2.2, 20x2.5, 25x3.0, 32x3.5, etc.
5.Continuous Service Temp: -60°C to +180°C (short-term 207°C)

1.It has excellent high-temperature resistance, with a long-term service temperature up to 180°C
2.Excellent chemical resistance, capable of withstanding most acids, alkalis and organic solvents
3.Outstanding hydrolytic stability, suitable for long-term contact with hot water and steam

4.High impact strength and creep resistance
5.Compliant with FDA and NSF standards, it is suitable for the food and medical fields
6.Excellent transparency makes it convenient to observe the fluid inside the tube

Water Treatment Systems: Used in ultrapure water systems, hot water supply systems, steam pipelines, etc., exhibiting excellent hydrolytic stability and heat resistance.
Medical Equipment: Used in medical devices, hemodialysis equipment, infusion systems, respiratory equipment, etc., meeting medical standards due to its biocompatibility and sterilizability.
Food and Beverage Industry: Used in food processing equipment, beverage delivery pipelines, dairy production lines, etc., meeting food safety standards and resistant to high-temperature sterilization.

Chemical Industry: Used in process piping systems for conveying various chemicals, solvents, acidic and alkaline media, as well as high-temperature and high-pressure processes.
Laboratory Equipment: Used in analytical instruments, laboratory piping systems, high-purity water systems, etc., exhibiting excellent chemical resistance and cleanliness.
Automotive Industry: Used in automotive fuel systems, cooling systems, air conditioning systems, etc., exhibiting excellent high-temperature and chemical resistance.

PPSU Specification
Item	Value	Test standard	Unit
Density	1.29	ISO 1183	g/cm³
Tensile Strength	70	ISO 527	MPa
Yield Strength	60-120	ISO 527	%
Bending modulus	2650	ISO 178	MPa
Impact strength (notch)	7	ISO 180	kJ/m²
Heat deflection temperature(1.8MPa)	207	ISO 75	°C
Continuous working temperature	180	-	°C
Melting point	360	ISO 11357	°C
Dielectric strength	16	IEC 60243	kV/mm
Volume resistivity	10¹⁶	IEC 60093	Ω·cm

The data is for reference only. There may be differences among different batches. The actual production and delivery shall prevail

Packaging of PPSU Tube/Pipe

Shanghai Mac Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. Paper carton, Pearl cotton carton, Wooden Case is adopted. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Mac Standard

2) Customization

packing
