Construction & Real Estate

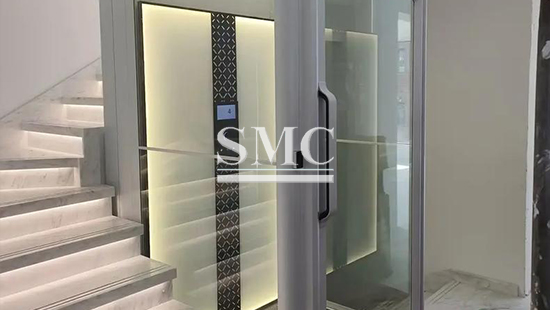

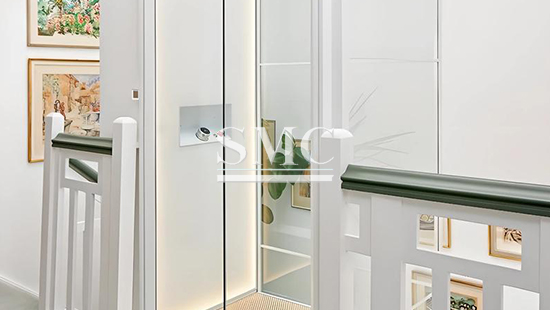

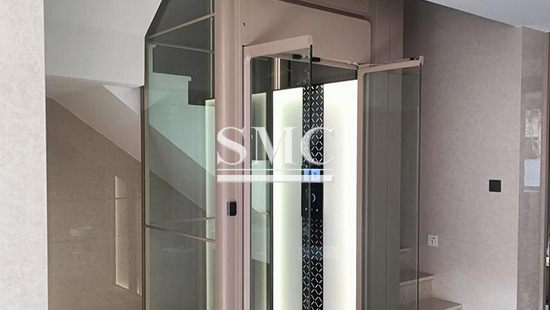

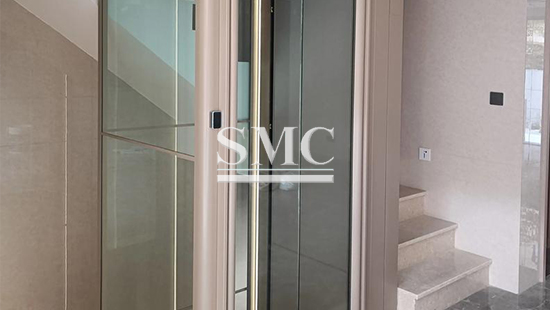

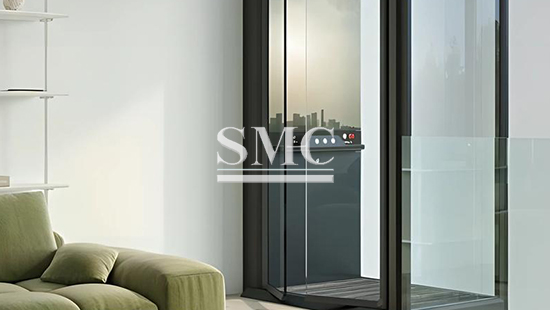

Residential Elevator

    Size:850*850-1580*1580mm


    Material:6063 aviation aluminum profile, double-layer laminated tempered glass


    Running speed:0.15m/s


    Load:250kg/320kg/400kg

Shanghai Metal Corporation is a leading Residential Elevator manufacturer and supplier.

The core features of Residential elevators can be summarized as: adaptability to small spaces, high safety, easy operation, personalized style, and low energy consumption and maintenance. Their original design intention was to provide families with convenient vertical transportation solutions, especially to meet the travel needs of the elderly and people with mobility difficulties, while taking into account the beauty and practicality of the home.

If you want to know more about our Residential Elevator, please feel free to contact us, we will reply you within 24 hours.

Technical Information of Residential Elevator:


Technical

Item

Details

Drive System

Microcomputer control system

Drive Motor

Customized servo motor

Screw Rod

20-year warranty

Running Speed

0.15 m/s

Integrated Frame & Guide Rail

Aviation-grade aluminum profile

Landing Door

Large glass door (single-slide door, center-opening door)

Color Options

256 RAL color codes available

Control Button

One-touch operation

Control Cabinet

Built-in / Independent

Backup Battery

Lead-acid battery

Load Capacity

250kg / 320kg / 400kg

Power

2.3kW

Power Supply

220V single-phase, 50Hz

Packing of Residential Elevator:



Wooden box.
