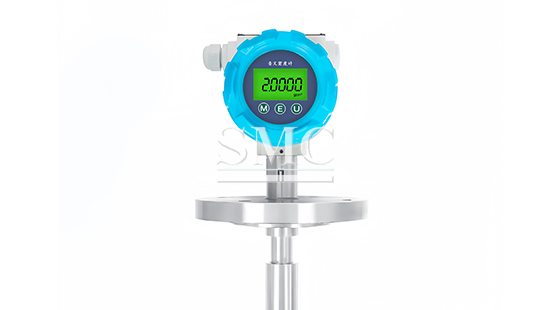

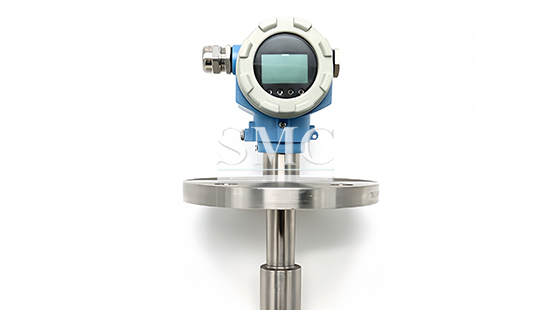

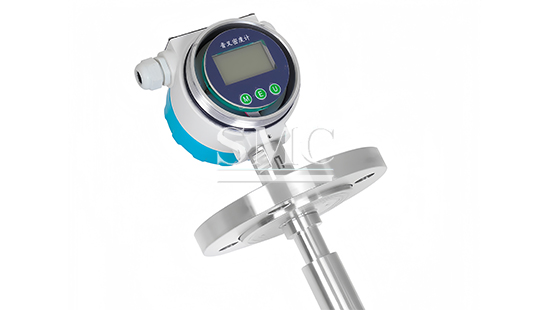

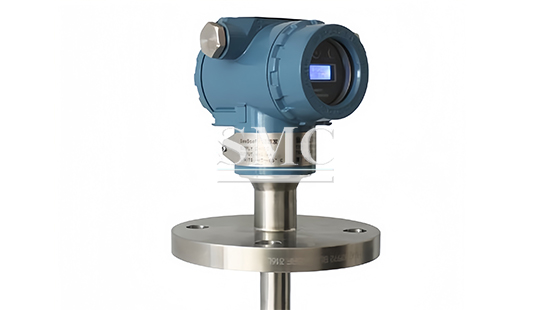

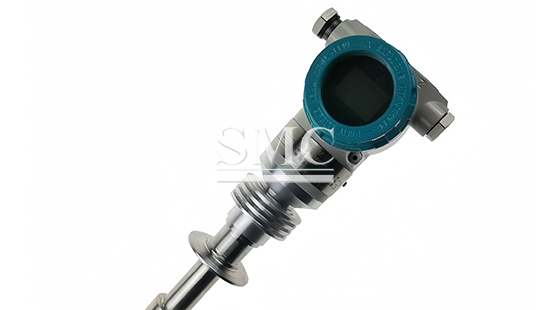

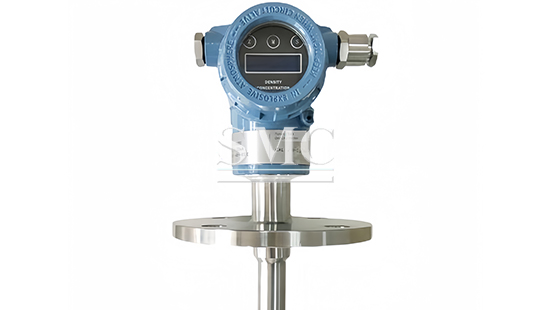

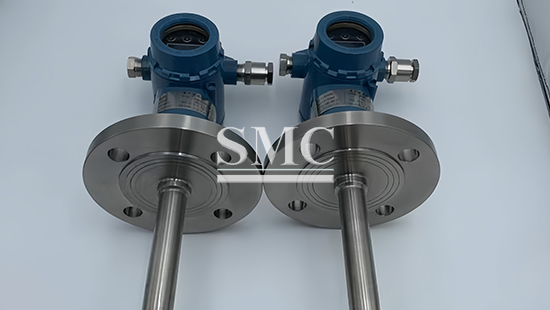

Tuning Fork Density Meter

Wetted parts: 316L, Hastelloy, titanium alloy, zirconium

Fork teeth: Standard polishing, PTFE coating, electropolishing

Measurement accuracy: ±0.001g/cm³

Measurement range: 0~2g/cm³

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac Corporation is a leading Tuning fork density meter manufacturer and supplier.

The tuning fork density meter is an online density measuring instrument designed based on the vibration principle of a tuning fork. Its core function is to measure density by detecting changes in the vibration frequency of the tuning fork caused by the medium. It has advantages such as no moving parts, low maintenance, and fast response, and is widely used in industrial scenarios such as petrochemical, food and beverage, and pharmaceutical industries.

If you want to know more about our Tuning fork density meter, please feel free to contact us, we will reply you within 24 hours.

1. Pressure:<2.5MPa,<6.3MPa
2.Connection types: flange, clamp, thread
3. Explosion-proof certification: Ex d IIC T6 Gb
4. Power supply: 24VDC, 100mA
5.Output: Four-wire, 4-20mA/RS485

1. Petrochemical Industry: Measures the density of crude oil, gasoline, diesel, and other petroleum products for quality control and trade transactions.
2. Food and Beverage Industry: Tests the concentration of syrups, fruit juices, beer, etc., to ensure product consistency.
3. Pharmaceutical Industry: Controls the concentration of pharmaceutical solutions to meet GMP requirements.
4. Environmental Protection and Water Treatment: Monitors the density of wastewater and sludge to optimize treatment processes.
5. Metallurgy and Paper Industry: Measures the concentration of mineral slurry and paper pulp to improve production efficiency.

Technical Information Of Tuning Fork Density Meter:

ITEM	RANG
Measurement range	Liquids: 0.5-2.5 g/cm³; Gases: 0.001-1 g/cm³
Measurement accuracy	±0.001~±0.002g/cm³
Repeatability	±0.0001~±0.0002 g/cm³
Operating temperature	-50℃ to +200℃
Work pressure	Maximum 207 bar (3000 psi)
Viscosity range	0-2000cP
Output signal	4-20mA、HART、RS485

Packing Of Tuning Fork Density Meter:

Fill the carton with cushioning material for packaging
