Tank volume range: 50L ~ 500L
Total length (A): 600–1400 mm
Net weight: 40 kg ~ 125 kg
Flange size for nozzle (D): 400–750 mm
Shanghai Mac is a leading Silo Air Blaster manufacturer and supplier.

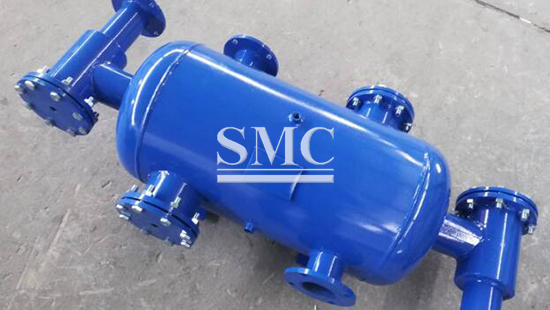

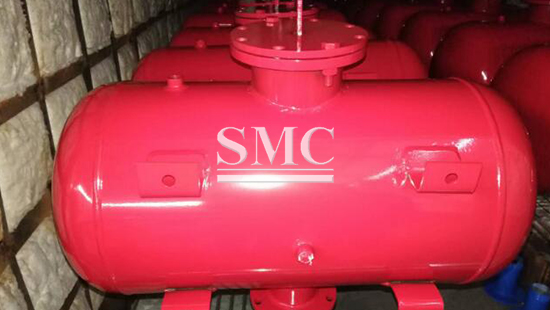

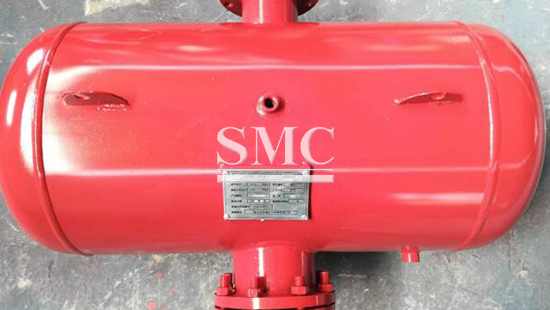

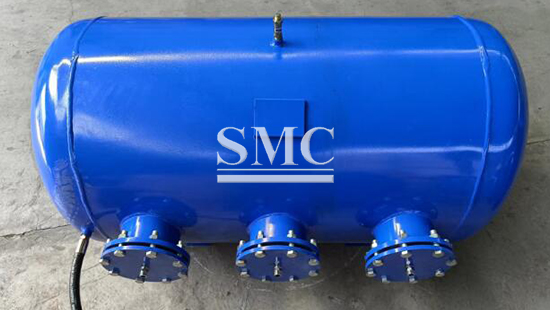

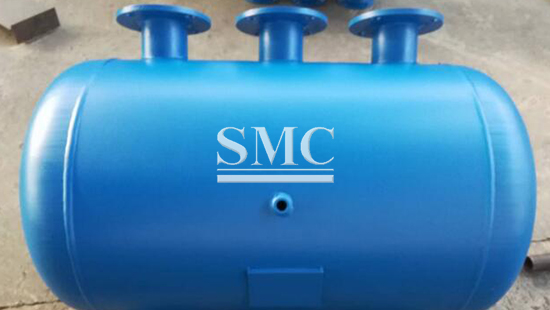

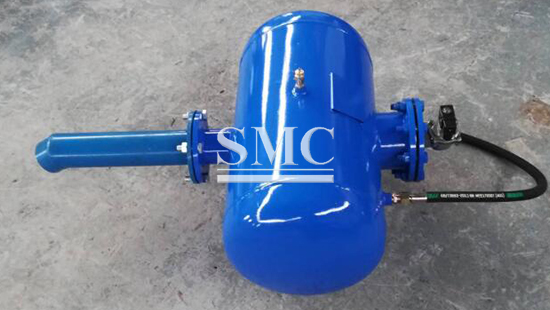

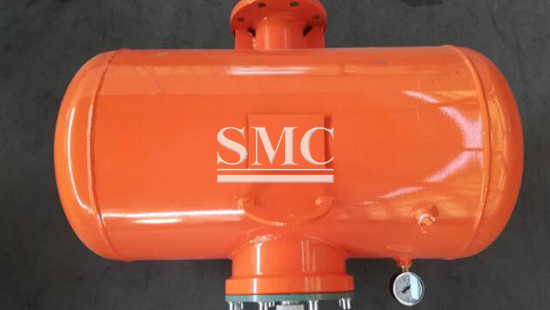

The Silo Air Blaster, is a specialized bulk material flow-aid device. Based on aerodynamic principles, it instantly releases compressed air inside the tank to generate supersonic blast waves, which break material bridging, wall adhesion and blockages in silos, hoppers and chutes. Available in 7 tank volumes from 50L to 500L, it offers two styles: bare tank and integrated solenoid valve type for manual or automatic remote control. Featuring leak-proof structure, low noise, spring anti-backflow piston and minimal maintenance without motor or lubrication, this eco-friendly low-energy equipment is widely applied in power plants, coal mines, cement, chemical, grain and metallurgy industries.
If you want to know more about our Silo Air Blaster price please feel free to contact us, we will reply you within 24 hours.
Technical Information of Silo Air Blaster:
|
Technical Parameters of Air Blaster |
|||||||||
|
Model |
Volume (L) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Dia(mm) |
Weight (kg) |
Nozzle Dia(mm) |
Mounting Size (mm) |
|
KQP-B-50 |
50 |
600 |
380 |
530 |
400 |
350 |
40 |
89 |
240×260 |
|
KQP-B-75 |
75 |
855 |
630 |
530 |
400 |
350 |
48 |
89 |
400×260 |
|
KQP-B-100 |
100 |
880 |
630 |
580 |
450 |
400 |
53 |
89 |
400×280 |
|
KQP-B-170 |
170 |
930 |
630 |
700 |
550 |
500 |
65 |
89 |
400×320 |
|
KQP-B-200 |
200 |
1100 |
800 |
700 |
550 |
500 |
75 |
108 |
500×320 |
|
KQP-B-300 |
300 |
1100 |
750 |
800 |
650 |
600 |
95 |
108 |
500×370 |
|
KQP-B-500 |
500 |
1400 |
1000 |
900 |
750 |
700 |
125 |
108 |
600×400 |
Pcckaging of Silo Air Blaster:
Carton or wooden box.
