Solar Irrigation Pump

Power Range: 0.75kW - 75kW

Maximum Water Head: 10m - 400m

Daily Water Flow: 10m³ - 1400m³

MPPT Efficiency: Up to 98%

Protection Class：IP44 / IP45

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac Corporation is a professional manufacturer and supplier of Solar Irrigation Pump with high quality and reasonable price.

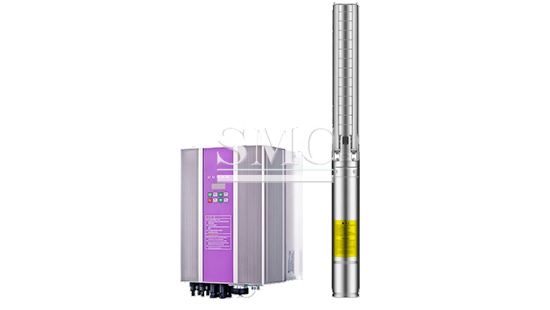

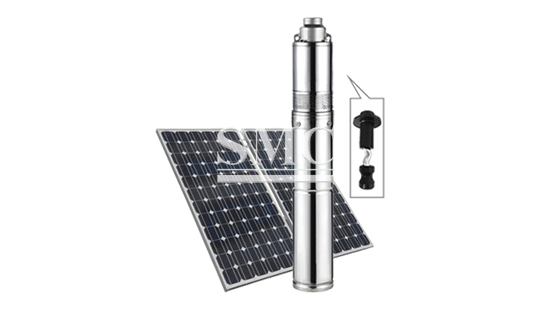

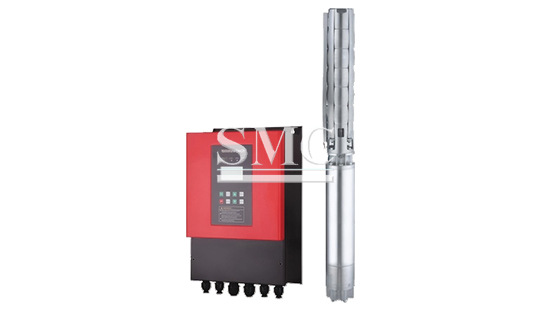

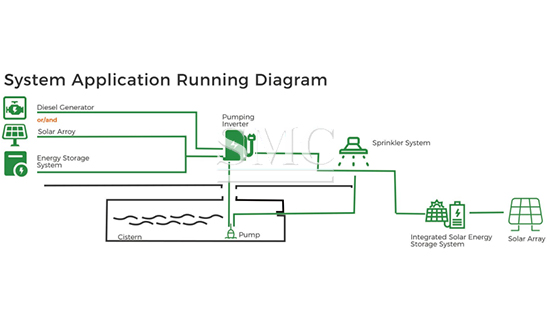

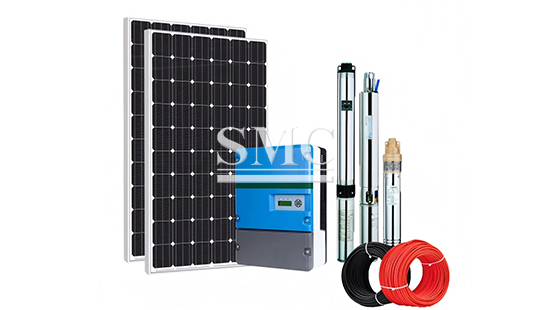

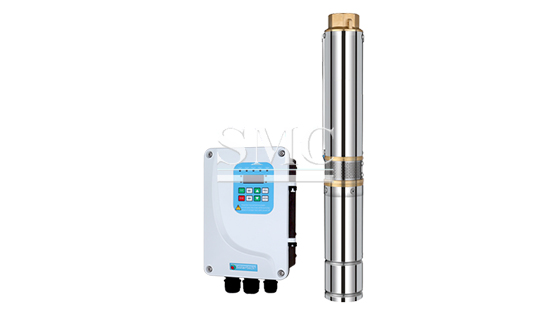

Solar Irrigation Pump consists of a solar pumping inverter and an AC pump. The solar pumping inverter converts DC power from the solar array into AC power to drive the pump. It is widely using in Large-scale agricultural irrigation, regional water supply projects.

If you want to know more about Solar Irrigation Pump or our metal products price please feel free to contact us, we will reply you within 24 hours.

1.Remote Monitoring
2.PAYGO Support
3.Hybrid Input
4.Solar Priority

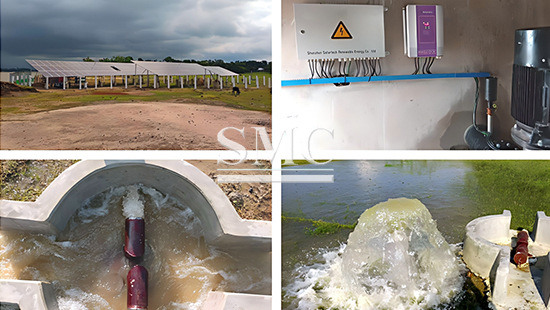

1.Agricultural Irrigation
2.Drinking Water Supply
3.Livestock Husbandry
4.Environmental

Technical Information of Solar Irrigation Pump:

Max.Input Voltage	880V
Recommended MPPT Voltage	460-850V
Max.input Current	45A
Max.MPPT Efficiency	>99%
Number of String	1
Voltage	360-460Vac,3PH
Frequency	50Hz/60Hz(±3%)
Max.Motor Output Power	15KW
Rated Output Voltage	380-460Vac(3PH)
Output Frequency Range	0-50/60Hz
Max.Output Current(1PH/3PH)	29A
Qmax. (m3/h)	36
H.max. (m)	80
Protection Level	IP65
Operating Temperature	-25~+60℃
Cooling Way	Force cooling
Display	LCD
Communication	RS485,GPRS
Altitude	3000mabove 3000m need derate operating
Noise Emission	<50dB
Dimension(W/D/Hmm)	265/173/518.5mm
Weight(kg)	17.5kg
Compliance	EN 50178;IEC/EN 62109-1;IEC61800
